BTHULTUS24027

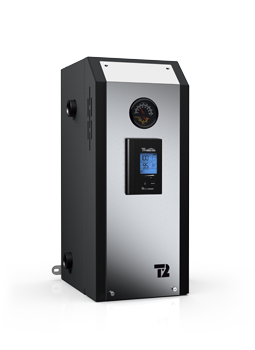

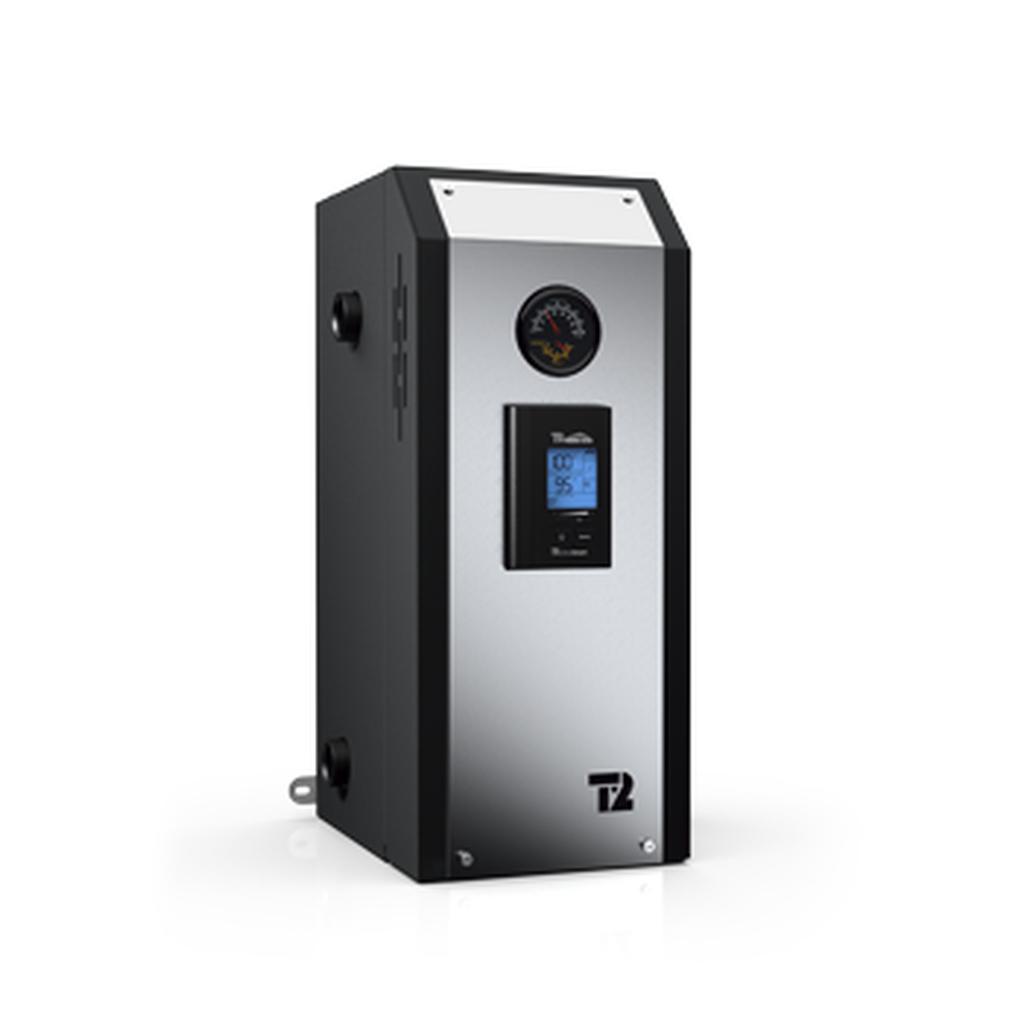

Thermal2000 bth ULTRA 27kw, 92k BTU/hr Electric Boiler, 240VAC

Maximum efficiency. Optimal performance.

Whether you need to heat a condominium, single-family home or commercial building, bth ULTRA electric boilers are your go-to solution. Ultra-silent and compact, these electric boilers are available in a wide variety of performance levels, from 7kW to 36kW, and with multiple voltage options. Ingenious! The bth ULTRA can also be easily combined with an auxiliary heater for a dual-energy system. It’s green. It’s clean. Thanks to its T2 UltraSmartTM controller, the boilers provide optimal comfort with accurate temperature management. Each electric boiler has a 15-year warranty on the reservoir, and a 2-year warranty on electrical and mechanical parts.

ASME Certified

Factory Direct
$ 3,097.30 $ 3,097.30

30-day money back guarantee
  • Manufacturer
  • Electrical
  • Max Working Pressure
  • Fuel Type
  • Heat Output (BTU/hr)
  • Stages
  • Electrical Supply (Awg)
  • Mounting
  • Condensing
  • Output Capacity (BTU/hr)
  • DHW Capability
  • Heat Exchanger Material
  • Water Connection Size
  • Warranty (Heat Exchanger)
  • Warranty (Parts)
  • Input Capacity (BTU/hr)
  • Vent Type
  • Amp Draw
  • Voltage
  • Power (kW)
  • Breaker (Amp)
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Manufacturer: Thermo2000
Electrical: 120/240 VAC, 60 Hz, 1-phase
Max Working Pressure: 30 psi
Fuel Type: Electric
Heat Output (BTU/hr): 92,124 BTU/hr
Stages: 6
Electrical Supply (Awg): 1 x 1 or 2 x 6 Cu, 1 x 00 or 2 x 4 Al
Mounting: Wall-Hung
Condensing: No
Output Capacity (BTU/hr): 92,100 BTU/hr
DHW Capability: None
Heat Exchanger Material: Copper
Water Connection Size: 1-1/4 in. NPT
Warranty (Heat Exchanger): Not stated
Warranty (Parts): 2 years
Input Capacity (BTU/hr): 92,100 BTU/hr
Vent Type: N/A
Amp Draw: 112.5 Amps
Voltage: 240 VAC / 60 Hz / 1 Phase
Breaker (Amp): 2 x 80 or 150 Amp
Documents
Thermo2000 bthULTRA Brochure Thermo2000 bthULTRA Manual
Voltage (VAC/Hz/Phase)240 VAC / 60 Hz / 1 Phase
Power (kW)27 kW
Heat Output (BTU/hr)92,124 BTU/hr
Current Load (Amps)112.5 Amps
Elements (kw)6 x 4.5 kW
Stages6
Electrical Supply (Awg)1 x 1 or 2 x 6 Cu, 1 x 00 or 2 x 4 Al
Breaker (Amp)2 x 80 or 150 Amp
