807-001

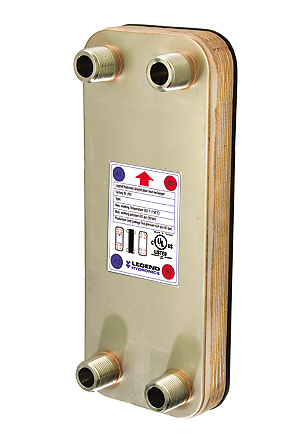

HX Series Heat Exchangers consist of acid-resistant stainless steel plates with a herringbone ridge pattern

Description:

The plates are arranged so that this pattern is in the opposite direction on each adjacent plate and at every point where the ridges intersect, a copper vacuum brazed joint exists forming a separate flow path for the two media exchanging heat energy. The counter-current flow paths of the media and the vigorous turbulence caused by the ridges ensure maximum heat transfer.

Key Features:

• U.L. Listed

• High thermal efficiency

• High temperature (302 °F) and pressure (435 psi) resistance

• High corrosion resistance

• No gasket seals

• Compact size and low weight

• Easy installation and less maintenance

• Very durable

Materials:

Stainless Steel Plates, Copper or Nickel Braze material

Applications:

For general purpose oil, water and gas cooling. Use on compressors, hydraulic packages, lasers and diesel engines. Excellent for use as refrigerant evaporators, condensers, subcoolers and desuperheaters.
