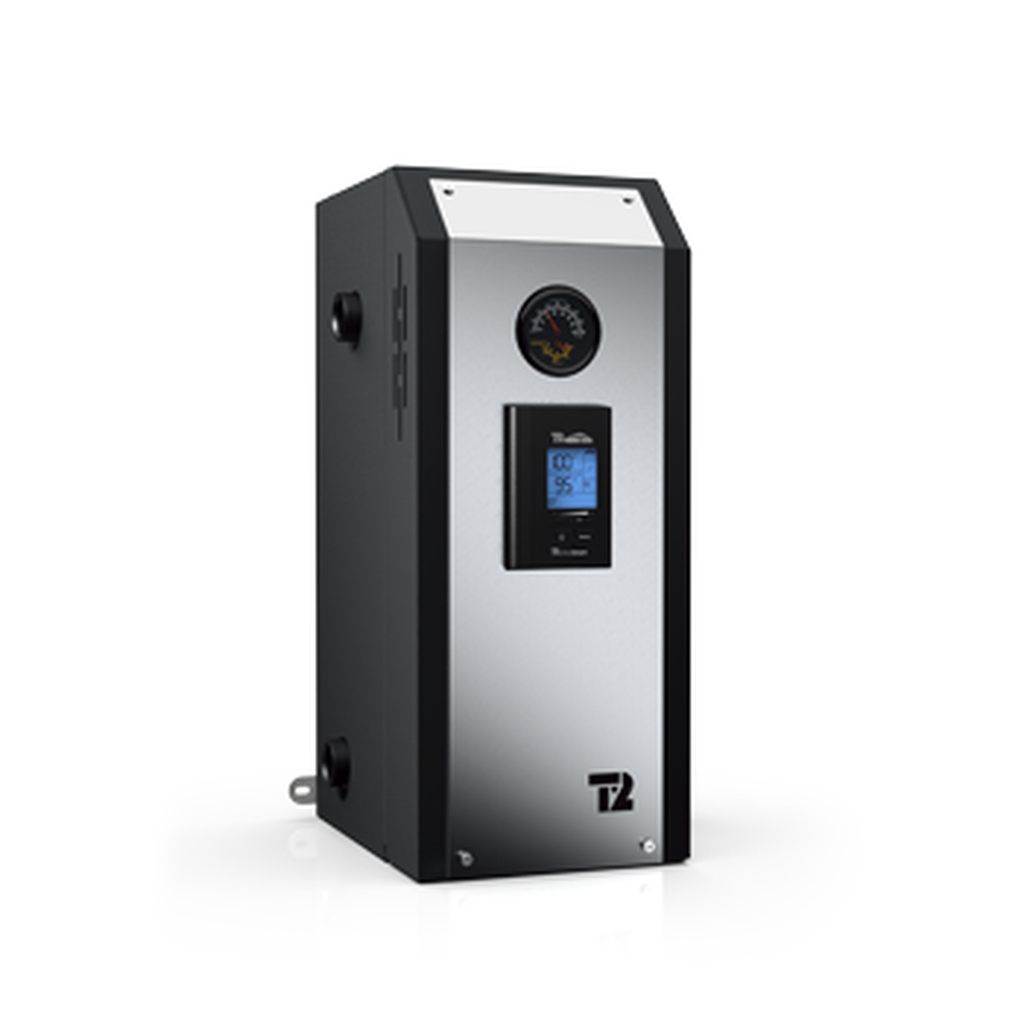

BTHULTUS24027

Maximum efficiency. Optimal performance.

Whether you need to heat a condominium, single-family home or commercial building, bth ULTRA electric boilers are your go-to solution. Ultra-silent and compact, these electric boilers are available in a wide variety of performance levels, from 7kW to 36kW, and with multiple voltage options. Ingenious! The bth ULTRA can also be easily combined with an auxiliary heater for a dual-energy system. It’s green. It’s clean. Thanks to its T2 UltraSmartTM controller, the boilers provide optimal comfort with accurate temperature management. Each electric boiler has a 15-year warranty on the reservoir, and a 2-year warranty on electrical and mechanical parts.

ASME Certified

3,097.30 3,097.30

  • Voltage (VAC/Hz/Phase)
  • Power (kW)
  • Heat Output (BTU/hr)
  • Current Load (Amps)
  • Elements (kw)
  • Stages
  • Electrical Supply (Awg)
  • Breaker (Amp)
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Voltage (VAC/Hz/Phase): 240 VAC / 60 Hz / 1 Phase
Power (kW): 27 kW
Heat Output (BTU/hr): 92,124 BTU/hr
Current Load (Amps): 112.5 Amps
Elements (kw): 6 x 4.5 kW
Stages: 6
Electrical Supply (Awg): 1 x 1 or 2 x 6 Cu, 1 x 00 or 2 x 4 Al
Breaker (Amp): 2 x 80 or 150 Amp
Voltage (VAC/Hz/Phase)240 VAC / 60 Hz / 1 Phase
Power (kW)27 kW
Heat Output (BTU/hr)92,124 BTU/hr
Current Load (Amps)112.5 Amps
Elements (kw)6 x 4.5 kW
Stages6
Electrical Supply (Awg)1 x 1 or 2 x 6 Cu, 1 x 00 or 2 x 4 Al
Breaker (Amp)2 x 80 or 150 Amp
