BTHULTUS20820

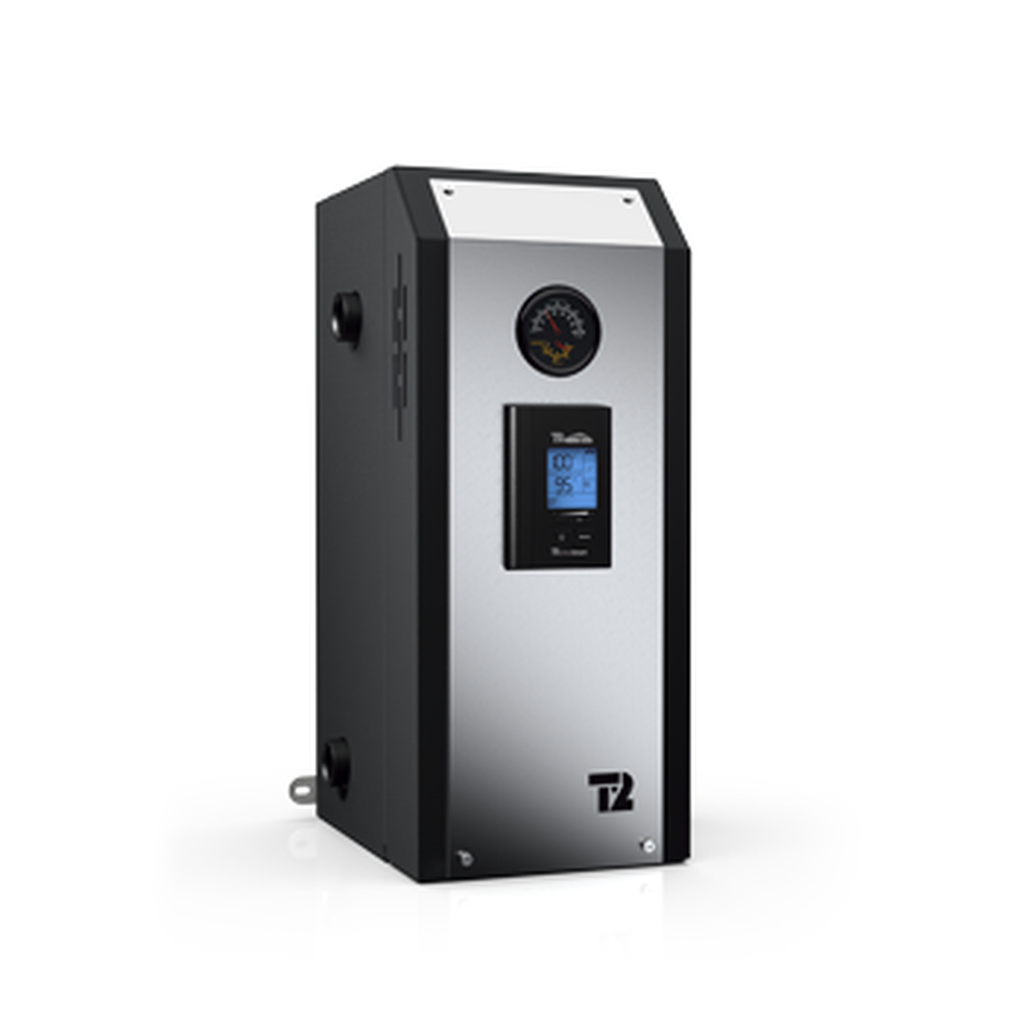

Thermal2000 bth ULTRA 20kw, 69k BTU/hr Electric Boiler, 208VAC

Maximum efficiency. Optimal performance.

Whether you need to heat a condominium, single-family home or commercial building, bth ULTRA electric boilers are your go-to solution. Ultra-silent and compact, these electric boilers are available in a wide variety of performance levels, from 7kW to 36kW, and with multiple voltage options. Ingenious! The bth ULTRA can also be easily combined with an auxiliary heater for a dual-energy system. It’s green. It’s clean. Thanks to its T2 UltraSmartTM controller, the boilers provide optimal comfort with accurate temperature management. Each electric boiler has a 15-year warranty on the reservoir, and a 2-year warranty on electrical and mechanical parts.

ASME Certified

Factory Direct
$ 3,583.78 $ 3,583.78

30-day money back guarantee
  • Manufacturer
  • Heat Output (BTU/hr)
  • Stages
  • Electrical Supply (Awg)
  • Amp Draw
  • Voltage
  • Power (kW)
  • Breaker (Amp)
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Manufacturer: Thermo2000
Heat Output (BTU/hr): 68,922 BTU/hr
Stages: 2
Electrical Supply (Awg): 6 Cu, 4 Al
Amp Draw: 56.5 Amps
Voltage: 208 VAC / 60 Hz / 3 Phase
Breaker (Amp): 80 Amp
Documents
Thermo2000 bthULTRA Brochure Thermo2000 bthULTRA Manual
Voltage (VAC/Hz/Phase)208 VAC / 60 Hz / 3 Phase
Power (kW)20 kW
Heat Output (BTU/hr)68,922 BTU/hr
Current Load (Amps)56.5 Amps
Elements (kw)6 x 4.5 kW
Stages2
Electrical Supply (Awg)6 Cu, 4 Al
Breaker (Amp)80 Amp
