DMF150

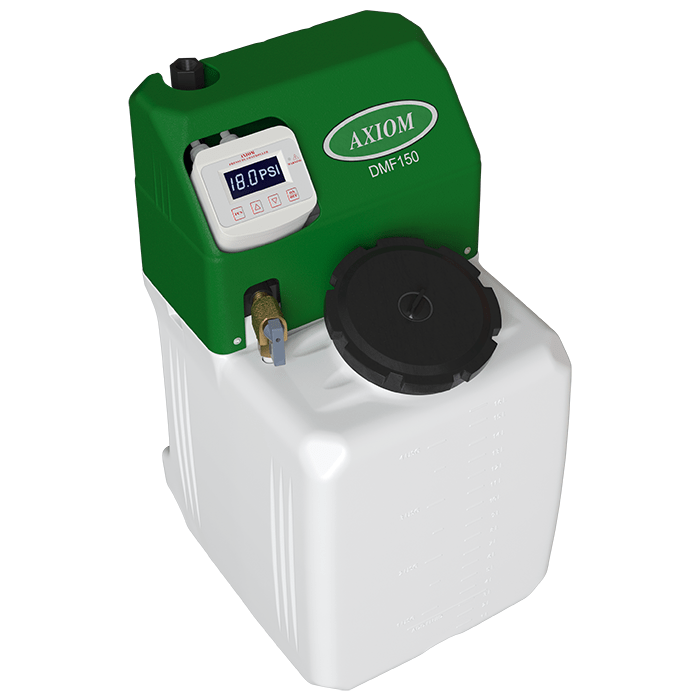

DMF150 ‘Pressure Pal’ Digital Mini System Feeder

The industry leader for pressurizing closed-loop hydronic systems introduces the newest ‘PRESSURE PAL’ to the Axiom Product Family. The DMF150 utilizes a digital pressure control (0-45 psig) with electronic alert contacts. The tank design incorporates a wall bracket connection that comes standard in the box. Front fill point makes fluid handling a simple process.

Features

• 17 litre (4.6 US gallon) tank for storage and mixing
• All features shown on user friendly digital display screen
• 0-45psig Pressure Setpoint with adjustable dead band
• N.O./N.C. Alert contacts and LED light enabled when low level, low pressure, or high-pressure condition
• Integrated Easy Connect Wall Mount Bracket comes with the unit
• Tilted 5” easy fill access on front of tank
• UL listed Power supply plugs into any standard 115 VAC outlet
• Diaphragm pump can run dry without damage
• No direct connection to potable water supply eliminates need for backflow prevention
• Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications
• Fluid level switch shuts the pump off and enables alarm contacts if the storage tank level gets too low
• Diverter valve allows easy purging of air on initial start-up, and manual mixing of solution
• Fluid drained for service can easily be put back into the system
• Prevents major floods
• Provides leak detection
