ST838-ONE-132

Watts Radiant SmartTrac Standard SubFloor Panel, 2 ft. x 2 ft. for 3/8 in. Tubing, Pallet of 132

SmartTrac Hydronic Radiant Floor Heating Solution

SmartTrac is a non-structural, modular panel system, designed to simplify radiant heating and cooling installations in subfloor, wall and ceiling applications.

Easy to configure and quick to install, SmartTrac is a flexible solution for any new construction or remodeling project.

It is manufactured from 5/8" (15.88 mm) thick MDF (medium density fiberboard) and is designed for use with 3/8" (9.5 mm), ASTM F876 PEX or ASTM F2623 PERT.

SIMPLE
One-panel solution

THIN
Ultra low profile, 5/8 in. (16 mm), Designed for 3/8 in. Tubing

CLEAN
No messy silicone required

EASY TO INSTALL
 Significantly reduce installation time

LIGHTWEIGHT
2-1/2 lbs. (1 kg) per square foot

FAST
Eliminate schedule and curing delays

FLEXIBLE
Configure for any space

GREENMinimum 92% recycled content, CARB ULEF exempt

RESPONSIVE
Responds faster than concrete

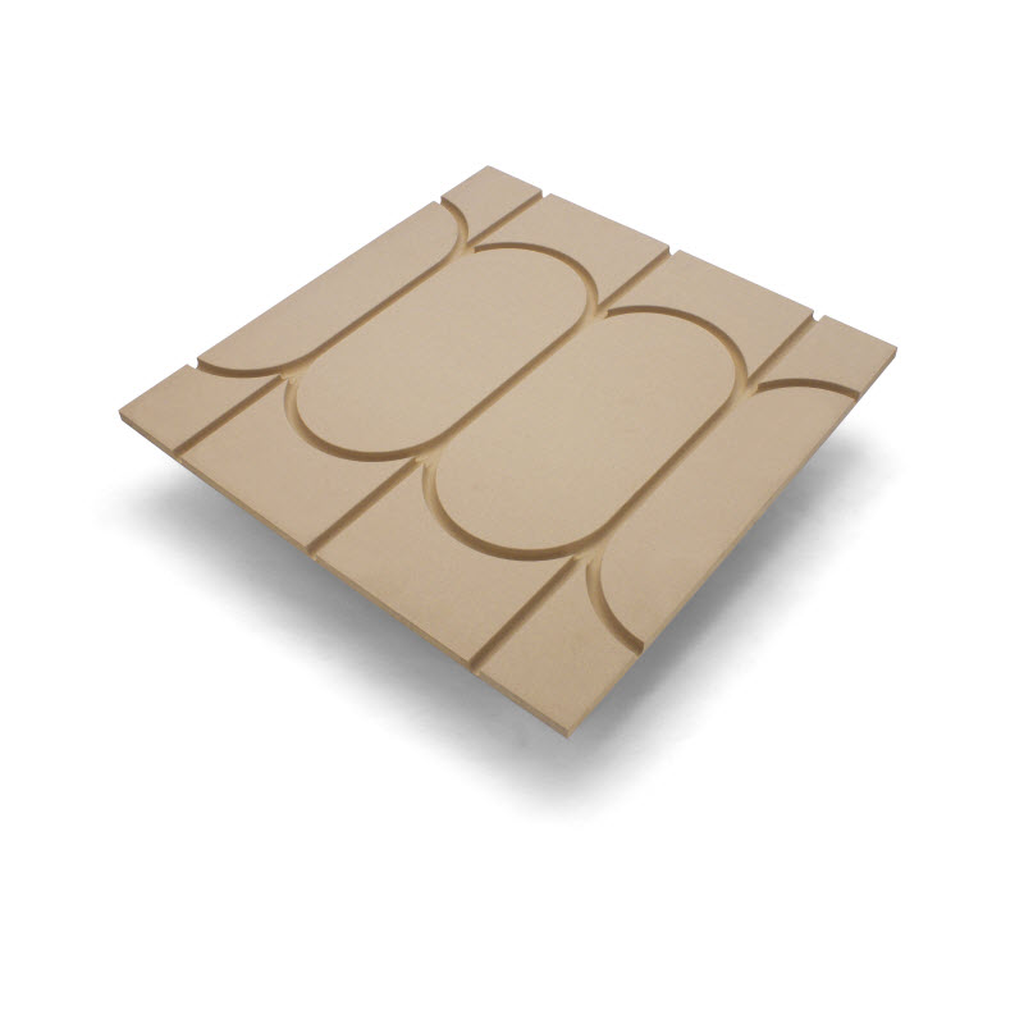

SmartTrac Panel

SmartTrac Tubing

SmartTrac Panels SmartTrac works with Watts Radiant’s RadiantPERT™ and RadiantPEX+™ Tubing


SmartTrac Hardwood Flooring Section Detail

SmartTrac Tile Flooring Section Detail

SmartTrac Subfloor Radiant Under Hardwood Flooring SmartTrac Subfloor Radiant Under Tile
Factory Direct
$ 5,929.66 $ 5,929.66

30-day money back guarantee
  • Manufacturer
  • Material
  • Density
  • Screw Holding, Face
  • Screw Holding, Edge
  • Flame Spread Rating
  • Moisture Content
  • Linear Expansion
  • Internal Bond
  • Tube Spacing
  • Approvals
  • Dimensions
  • Thickness Swell
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Manufacturer: Watts
Material: MDF (medium density fiberboard)
Density: 46 lb/ft3
Screw Holding, Face: 225 lbs
Screw Holding, Edge: 200 lbs
Flame Spread Rating: Class 3
Moisture Content: 4 - 6%
Linear Expansion: 0.3%
Internal Bond: 130 lb/in2
Tube Spacing: 8 in. O.C.
Approvals: Awarded CARB ULEF Exemption.
Dimensions: 24 in. x 24 in. x 5/8 in.
Thickness Swell: 5%
Documents
Watts SmartTrac Brochure Watts SmartTrac Manual Watts SmartTrac Submittal

Watts Radiant SmartTrac Standard SubFloor Panel, 2 ft. x 2 ft. for 3/8 in. Tubing, Palate of 132
