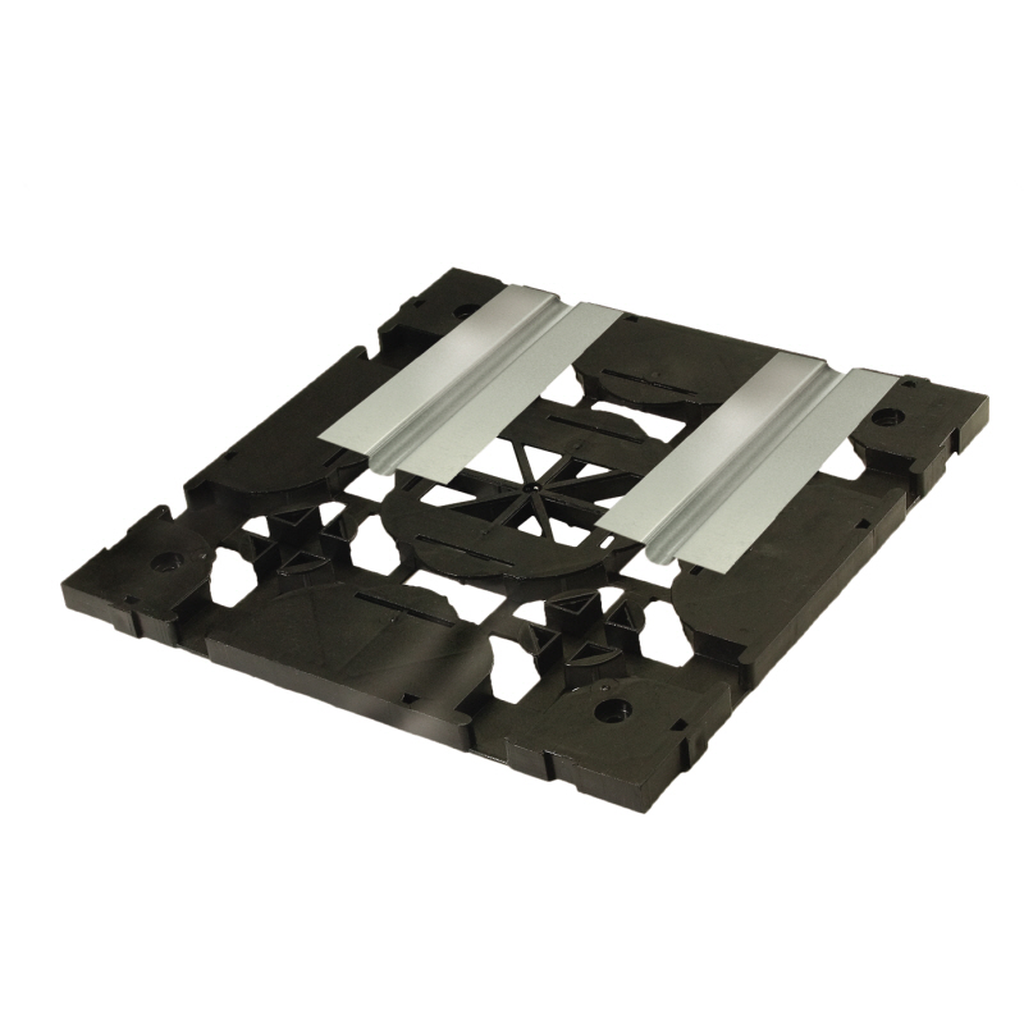

VT-RP

VersaTherm™

Unlike any radiant floor on the market

The VersaTherm™ Floor System is an innovative, low-profile, high-output, snap-fit radiant panel system ideally suited for both new construction and renovation projects. Unlike any dry radiant system on the market, the panels snap together in minutes, saving significant labor costs. The 3/4 inch thick panels are pre-insulated and naturally water resistant- great for retrofits and basements. VersaTherm’s use of 1/2 inch tubing allows for greater circuit lengths. The tubing is 100% protected by metal and the entire surface transfers heat.

Key Features:

• Labor Saving − snaps together

• 1/2 inch tubing− for longer circuit lengths

• Tubing is protected against damage

• Return Panels are pre-insulated − great for retrofits and basements

• Naturally water resistant

• Entire surface transfers heat

• Return Panels are easily cut for tight installations

• Tube spacing is 8 inches on center

Calculate Quantity:

Return Panels (VT-RP) Panel Size = 15.75 in. x 15.75 in. = (248) 1.72 sq. ft. (20 panels per box)

NUMBER OF PANELS:

_Project square footage__ x 0.117 = _Number of Main Panels_ (Round Up)

    EXAMPLE: 400 sqft x 0.117 = 46.8 or (47)

NUMBER OF CASES:

_Number of Main Panels needed__ ÷ 20 = _Number of Cases of needed_ (Round Up)

    EXAMPLE: 47 panels ÷ 0 = 9.4 or (10) boxes
