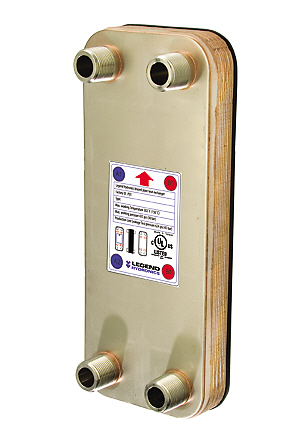

Legend HX-100 (3/4" MPT) Brazed Plate 50K BTU 10 Plate Heat Exchanger

    268.06 268.06 268.06 USD


    This combination does not exist.

    Add to Cart

    Legend HX-100 (3/4" MPT) Brazed Plate 50K BTU 10 Plate Heat Exchanger

    HX Series Heat Exchangers consist of acid-resistant stainless steel plates with a herringbone ridge pattern


    The plates are arranged so that this pattern is in the opposite direction on each adjacent plate and at every point where the ridges intersect, a copper vacuum brazed joint exists forming a separate flow path for the two media exchanging heat energy. The counter-current flow paths of the media and the vigorous turbulence caused by the ridges ensure maximum heat transfer.

    Key Features:

    • U.L. Listed

    • High thermal efficiency

    • High temperature (302 °F) and pressure (435 psi) resistance

    • High corrosion resistance

    • No gasket seals

    • Compact size and low weight

    • Easy installation and less maintenance

    • Very durable


    Stainless Steel Plates, Copper or Nickel Braze material


    For general purpose oil, water and gas cooling. Use on compressors, hydraulic packages, lasers and diesel engines. Excellent for use as refrigerant evaporators, condensers, subcoolers and desuperheaters.
