Item Details

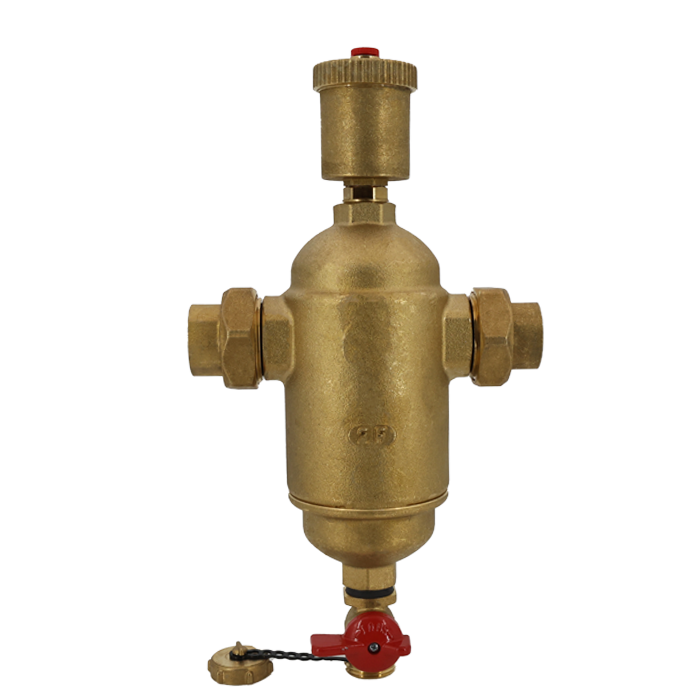

| Model | T-88 High Performance Air & Debris Eliminator Kit |
| Size | 3/4" |
| Connection | Female NPT (FNPT) |
| Dimensions (in.) | 11.80 H x 6.50 W x 5.29 D (full assembly incl. air vent & tailpieces) |
| Weight (lbs.) | 4.80 |
| UPC | 662545069630 |
| Pack Qty | 1 (Case/Carton: 1/1) |
| Max Working Pressure | 125 psi |
| Max Working Temperature | 230° F |
| Max Flow Rate | 6 gpm |
| Includes | T-88 body, automatic high-capacity air vent with check valve adapter, purge valve, serviceable stainless steel screen, two (2) 3/4" FNPT connectors |
| Flow | Bi-directional |
Features
- Separates entrained air, micro-bubbles, and debris from system fluid
- Large bowl design with internal stainless steel screen
- Automatic air vent attaches through check valve — serviceable without losing system pressure
- Two-piece bowl for easy cleaning or screen replacement
- Bi-directional flow improves adaptability and installation flexibility
- Purge valve at the bottom for blowing out collected debris
