Caleffi Zone Valve 1 in. Press Fit Twist Top w/ES

    172.73 172.73 172.73 USD


    This combination does not exist.

    Add to Cart

    Caleffi Zone Valve 1 in. Press Fit Twist Top w/ES

    Item Details:

    Max working pressure150 psi.
    Max temp200 °
    Max ?P close-off pressure  20 psi
    Power supply24V AC/DC
    Initial current draw? 250 mA
    Power ConsumptionHolding 3 W Inrush 19 VA
    Rating of micro-switch contacts5 A (24 V)
    Wire Lead Connection31.5 in.

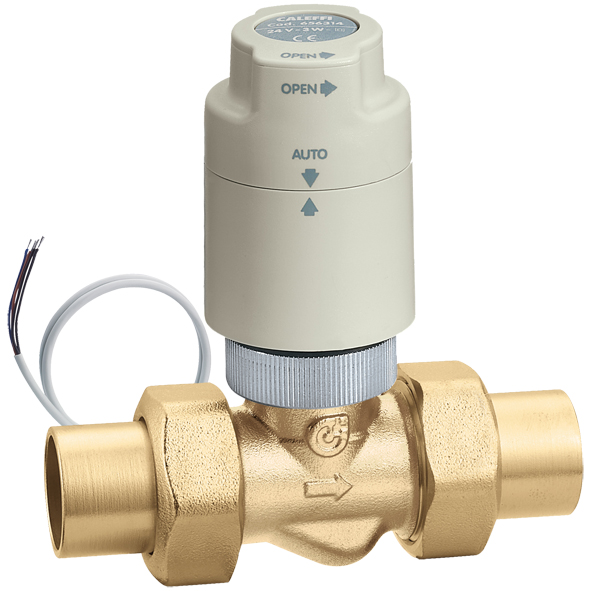

    2-way thermo-electric zone valve Two-way thermo-electric zone valve. Complete with TwisTop™ (code 656354) actuator. Brass trim. Spring return. Normally closed.

    • Power consumption: holding: 3 W.
    • Power consumption: inrush: 6 VA.
    • Connection: 1", press union.
    • Maximum working pressure: 150 psi.
    • Medium temperature range: 32–200 °F.
    • Electric supply: 24 V (AC) / (DC).
    • Starting current: ≤ 250 mA.
    • Auxiliary microswitch contact rating (24 V): 5 A.
    • △p max.: 20 psi.
    • Cv: 4.0 gpm.
