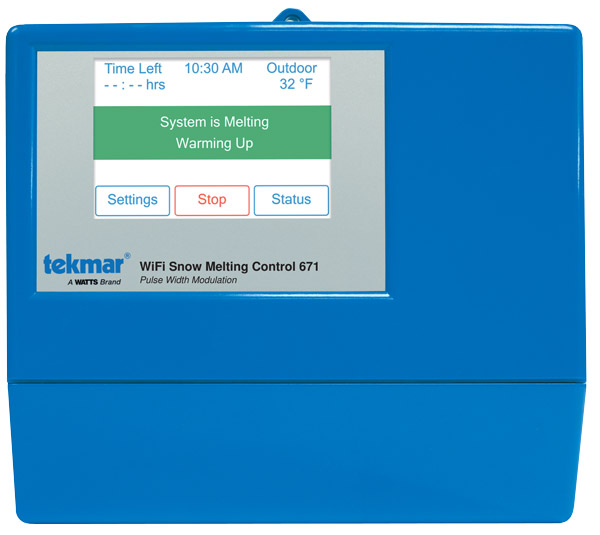

Tekmar WiFi Snow Melting Control - Pulse Width Modulation
Tekmar WiFi Snow Melting Control - Pulse Width Modulation
Details
Specifications
Control | Microprocessor control. This is not a safety (limit) control |
Packaged weight | 4.3 lb. (1960 g) |
Dimensions | 6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm) |
Display | 3.5" color touchscreen |
Enclosure | Blue PVC plastic, NEMA type 1 |
Approvals | CSA C US, meets Class B: ICES & FCC Part 15 |
Ambient conditions | -4 to 122°F (-20 to 50°C), <90% RH non-condensing, outdoor use permitted when installed inside a NEMA 3 enclosure |
Power supply | 115 V (ac) ±10%, 60 Hz, 20 VA |
Relays | 230 V (ac), 5 A, 1/3 hp |
Manual melt call | Short or 0 - 32 V(ac) |
Communications | WiFi 802.11n, 2.4 GHz, WPA2 encryption |
Mobile app | Apple iOS, Android |
Sensor | NTC thermistor, 10 k? @ 77°F (25°C ±0.2°C) ß=3892 |
Included | Outdoor Sensor 070 |
Optional | tekmar type # 072, 073, 087, 090, 094, 095 |
Warranty | Limited 3 Year Warranty |
