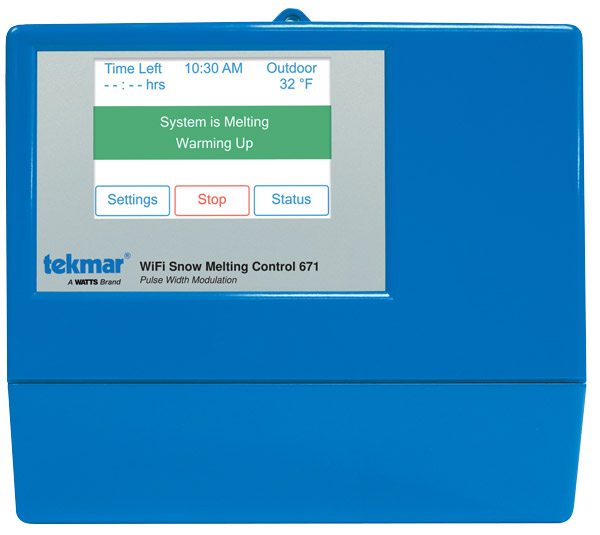

Tekmar WiFi Snow Melting Control - Pulse Width Modulation

    1,215.45 1,215.45 1215.45 USD


    This combination does not exist.

    Add to Cart

    Tekmar WiFi Snow Melting Control - Pulse Width Modulation


    ControlMicroprocessor control. This is not a safety (limit) control
    Packaged weight4.3 lb. (1960 g)
    Dimensions6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
    Display3.5" color touchscreen
    EnclosureBlue PVC plastic, NEMA type 1
    ApprovalsCSA C US, meets Class B: ICES & FCC Part 15
    Ambient conditions-4 to 122°F (-20 to 50°C), <90% RH non-condensing, outdoor use permitted when installed inside a NEMA 3 enclosure
    Power supply115 V (ac) ±10%, 60 Hz, 20 VA
    Relays230 V (ac), 5 A, 1/3 hp
    Manual melt callShort or 0 - 32 V(ac)
    CommunicationsWiFi 802.11n, 2.4 GHz, WPA2 encryption
    Mobile appApple iOS, Android
    SensorNTC thermistor, 10 k? @ 77°F (25°C ±0.2°C) ß=3892
    IncludedOutdoor Sensor 070
    Optionaltekmar type # 072, 073, 087, 090, 094, 095
    WarrantyLimited 3 Year Warranty

    The WiFi Snow Melting Control 671 operates hydronic and electric heating equipment designed to melt snow and/or ice from roads and walkways surfaces. The control works with tekmar Snow/Ice Sensor 090 or Snow Sensor 095 to automatically detect snow or ice and operates a single boiler, steam valve or electric cable to supply heat to the slab. The Watts® Home mobile application allows for remote operation and monitoring of the snow melting system from anywhere in the world.

    • Automatic software updates
    • Automatic snow/ice detection
    • Supports both inslab and retrofit aerial sensors
    • Supports multiple zones with priority
    • Auto storm
    • Idling
    • Warm weather shut down
    • Cold weather cut off
    • Economelt
