600099A

Caleffi LegioMix® Electronic Mixing Valve 2 in. Sweat Union 47Cv

    2,637.18 2,637.18 2637.18 USD

    2,637.18

    This combination does not exist.

    Add to Cart

    Caleffi LegioMix® Electronic Mixing Valve 2 in. Sweat Union 47Cv



    Item Details

    Connector2 in. sweat
    Recommended Flow Rate Minimum (gpm/lpm)8.8 / 33.8
    Recommended Flow Rate Maximum (gpm/lpm)215 / 814
    Max. body pressure rating250 psi
    Max. operating pressure150 psi
    Suitable fluidsWater

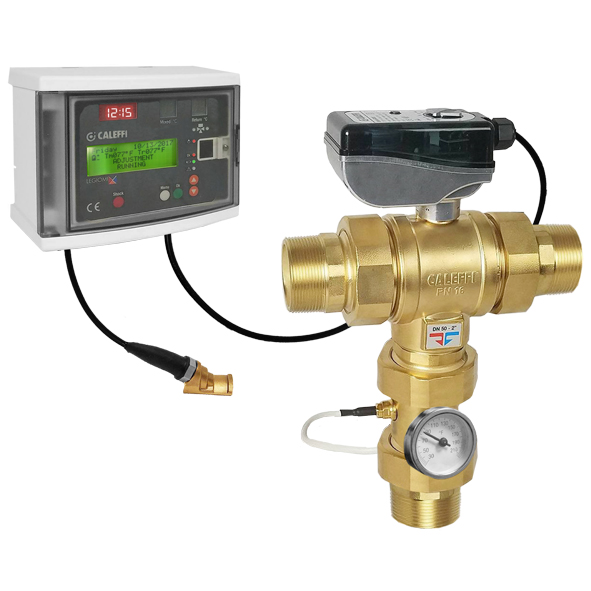

    Caleffi LEGIOMIX® Electronic Mixing Valve

    Description

    Electronic mixing valve with optional selectable programs for thermal disinfection of hot water recirculation systems to kill Legionella bacteria.

    Code number includes:

    • 3-way ball valve
    • 3-wire floating control actuator
    • controller/user interface with DIN rail mounting bracket
    • mixed outlet temperature sensor/probe
    • return temperature sensor strap on
    • mixed outlet temperature gauge
    • Compliance with the following codes: IPC and UPC for use in accordance with the U.S. and Canadian plumbing codes

    Compliance with the following standards:

    • ASSE 1017 Temperature Actuated Mixing Valves for Hot Water Distribution Systems
    • CSA B15.3 Water Temperature Limiting Devices
    • NSF/ANSI 372 - 2016, Drinking Water System Components - Lead Content
    • Reduction of Lead in Drinking Water Act, California Health and Safety Code 116875
    • S.3874, Reduction of Lead in Drinking Water Act

    Meets requirements of ANSI/NSF 372-2011 and certified to ASSE 1017, CSA B15.3, UPC, IPC, Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes.
