600079A

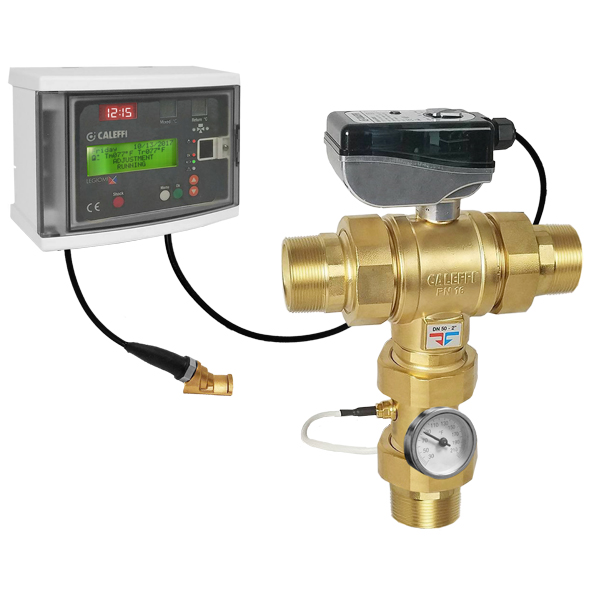

Caleffi LEGIOMIX® Electronic Mixing Valve

Description

Electronic mixing valve with optional selectable programs for thermal disinfection of hot water recirculation systems to kill Legionella bacteria.

Code number includes:

• 3-way ball valve
• 3-wire floating control actuator
• controller/user interface with DIN rail mounting bracket
• mixed outlet temperature sensor/probe
• return temperature sensor strap on
• mixed outlet temperature gauge
• Compliance with the following codes: IPC and UPC for use in accordance with the U.S. and Canadian plumbing codes

Compliance with the following standards:

• ASSE 1017 Temperature Actuated Mixing Valves for Hot Water Distribution Systems
• CSA B15.3 Water Temperature Limiting Devices
• NSF/ANSI 372 - 2016, Drinking Water System Components - Lead Content
• Reduction of Lead in Drinking Water Act, California Health and Safety Code 116875
• S.3874, Reduction of Lead in Drinking Water Act

Meets requirements of ANSI/NSF 372-2011 and certified to ASSE 1017, CSA B15.3, UPC, IPC, Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes.
