Tekmar Invita WiFi Thermostat 564 - Radiant Floor, 2 Heat Pump/Cool, Humidity
Tekmar Invita WiFi Thermostat 564 - Radiant Floor, 2 Heat Pump/Cool, Humidity
Features:
| Control | Microprocessor control. This is not a safety (limit) control |
| Packaged Weight | 0.9 lb. (400 g) |
| Dimensions | 4-1/2" H x 4-3/4" W x 7/8" D (114 x 120 x 22 mm) |
| Enclosure | White PVC plastic, NEMA type 1 |
| Approvals | Meets Class B: ICES & FCC Part 15 |
| Ambient conditions | Indoor use only, 32 to 122ºF (0 to 50ºC), RH ?90% non-condensing |
| Environmental | Compatible with chlorinated swimming pool environments. Do not use in presence of ammonia (animal barns), methanol, ethanol, acetone. |
| Power Supply | 24 V ±10%, 60 Hz, 2 VA standby, NEC / CEC Class 2 |
| Relays | 24 V (ac) 2A |
| 0-10 V (dc) Output | 3.3 V (dc) humidity sensor power, 3.0 mA maximum |
| Humidity Sensor | 0 to 90% +/-3% RH |
| Temperature Sensor | NTC thermistor, 10 k? @ 77°F (25°C ±0.2°C) ß=3892 |
| -Included Sensors | None |

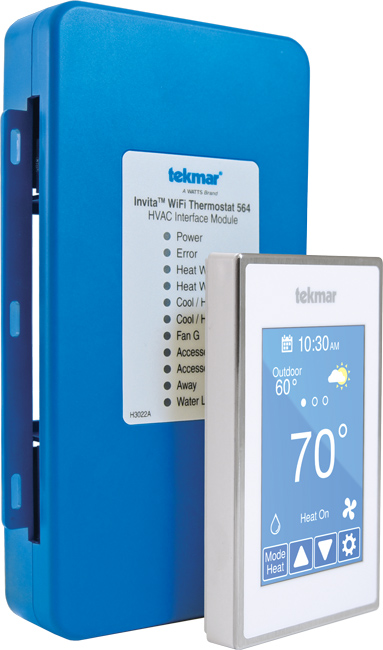

This white finish Invita® WiFi Thermostat makes upgrading easy by using the existing 2 wires from any living space to connect to an HVAC Interface Module in the mechanical room. It works with most types of heating and cooling systems including conventional, heat pump and dual fuel while offering fan, relative humidity and ventilation control. The Watts® Home app provides secure WiFi adjustment, remote temperature control and can send email notifications when there are problems with the HVAC system. The Invita WiFi offers a choice of five display screen color themes.
Features
Slim profile with multiple display color options
Ventilation
Mobile and web app, warning email notifications
Relative humidity control
Weather, outdoor temperature
Programmable schedule with early start, energy monitoring
Water leak notification when connected to Watts FloodSafe Water Detector Shutoff
Tekmar 564 Invita Users Manual
