Tekmar Invita WiFi Thermostat 564 - Radiant Floor, 2 Heat Pump/Cool, Humidity

    306.69 306.69 306.69 USD


    This combination does not exist.

    Add to Cart

    Tekmar Invita WiFi Thermostat 564 - Radiant Floor, 2 Heat Pump/Cool, Humidity


    ControlMicroprocessor control. This is not a safety (limit) control
    Packaged Weight0.9 lb. (400 g)
    Dimensions4-1/2" H x 4-3/4" W x 7/8" D (114 x 120 x 22 mm)
    EnclosureWhite PVC plastic, NEMA type 1
    ApprovalsMeets Class B: ICES & FCC Part 15
    Ambient conditionsIndoor use only, 32 to 122ºF (0 to 50ºC), RH ?90% non-condensing
    EnvironmentalCompatible with chlorinated swimming pool environments. Do not use in presence of ammonia (animal barns), methanol, ethanol, acetone.
    Power Supply24 V ±10%, 60 Hz, 2 VA standby, NEC / CEC Class 2
    Relays24 V (ac) 2A
    0-10 V (dc) Output3.3 V (dc) humidity sensor power, 3.0 mA maximum
    Humidity Sensor0 to 90% +/-3% RH
    Temperature SensorNTC thermistor, 10 k? @ 77°F (25°C ±0.2°C) ß=3892
    -Included SensorsNone

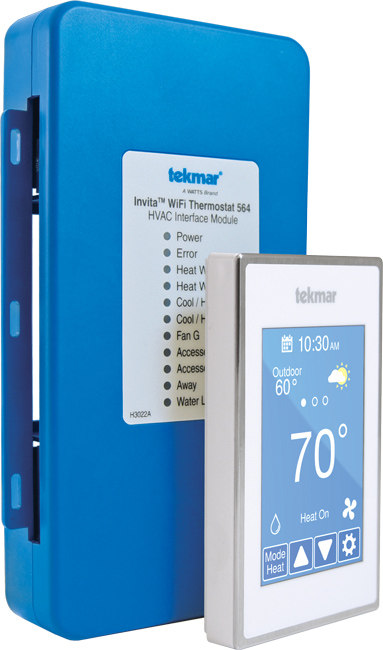

    This white finish Invita® WiFi Thermostat makes upgrading easy by using the existing 2 wires from any living space to connect to an HVAC Interface Module in the mechanical room. It works with most types of heating and cooling systems including conventional, heat pump and dual fuel while offering fan, relative humidity and ventilation control. The Watts® Home app provides secure WiFi adjustment, remote temperature control and can send email notifications when there are problems with the HVAC system. The Invita WiFi offers a choice of five display screen color themes.


    • Slim profile with multiple display color options

    • Ventilation

    • Mobile and web app, warning email notifications

    • Relative humidity control

    • Weather, outdoor temperature

    • Programmable schedule with early start, energy monitoring

    • Water leak notification when connected to Watts FloodSafe Water Detector Shutoff

    Tekamr Invita 564 Thermostat
