561

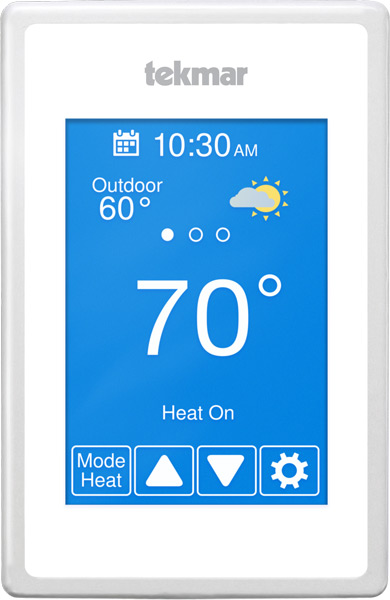

Tekmar WiFi Thermostat 561 - One Stage Heat
The WiFi Thermostat 561 provides precise temperature control of a one-stage heating system. When connected to the Internet, the Watts® Home mobile app allows the thermostat to be controlled remotely. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. The thermostat supports radiant floor heating and optional floor sensors can be installed to enhance comfort and protect floor coverings.
Features
- Mobile app for iOS and Android, supports optional floor sensor
- Automatic software updates, outdoor temperature
- Local weather, Email error and warning notifications
- Time clock updated from Internet, 7 day programmable schedule
- Away energy savings mode, early start
- Energy monitoring
- English/French/Spanish languages
- 3.5 inch color touchscreen
- Selectable background colors
Specifications
| Agency Approvals | Meets Class B: ICES & FCC Part 15 |
| Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing |
| Control Type | Microprocessor control, this is not a safety (limit) control |
| Dimensions | 4-5/8" H x 3" W x 15/16" D (118 x 76 x 24 mm) |
| Enclosure Material | White PVC plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Markets | Single-Family Homes |
| Power Supply | 15 to 30 V (ac/dc), 2 VA, Class 2 |
| Relay | 30 V (ac/dc), 2 A, Class 2 circuits |
| Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
