Caleffi Adjustable differential pressure by-pass valve

51.09 51.09 51.09 USD

51.09

Not Available For Sale

    This combination does not exist.

    519006

    Caleffi Adjustable differential pressure by-pass valve

      51.09 51.09 51.09 USD

      51.09

      Not Available For Sale

      This combination does not exist.

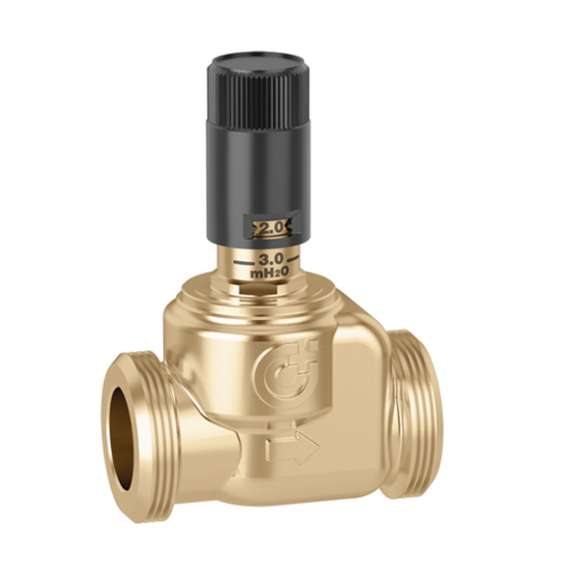

      Caleffi Adjustable differential pressure by-pass valve


      Item Details

      Connections1” male x 1” male (straight)
      Max. operating pressure:145 psi (10 bar)
      Max. operating temperature:212°F (100°C)
      By-pass differential pressure setting range:0.3 - 4.3 psi (2 - 30 kPa)

      519 series Adjustable differential pressure by-pass valve

      The adjustable differential pressure by-pass valve ensures the head pressure of the pump is proportional to the number of two-way on/off, modulating or thermostatic valves being closed in the secondary circuit, preventing pump overheating and excessive fluid velocity.
