Legend Stainless Steel Tubing Clamp

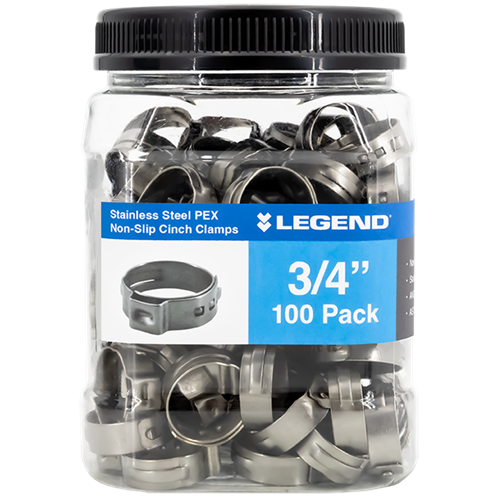

The Stainless Steel PEX Non-Slip Clamp or Non-Slip Cinch ring is used with the ASTM F2098 cinch fitting. The contractor pack comes in a bulk quantity jar. This ring is also called the cinch grip ring or Grinch ring. These rings are designed for use with PEX Barbed fittings F1807 & F2159. Grinch rings grip the tube in an oval shape. They move freely on tube without worry of slipping or falling off when prepping to clamp. When ready to clamp, use a ratcheting cinch tool with a visual indicator.
It’s a cinch
- Otiker style ratcheting tool provides easy one-tool assembly.
- Connections can be dry-fit.
- Connections can be made with wet tubing.
- Final connections take only seconds.
- CinchTool only releases when connection is complete, ensuring a perfect connection.
- No calibration required on the CinchTool.
- Can visually verify whether connection is completed – tab of clamp is “pinched”.
- Connection rated to 160 psi @73°F; 100 psi @ 180°F
- Clamp is an interlocking ring, forming a complete 360° uniform, watertight seal.
- Corrosion resistant, annealed 304 stainless steel.
- Uses ASTM F1807 brass or ASTM F2159 plastic insert/crimp fittings(plastic for potable systems only).
Approvals
- Manufactured in accordance with American Society for Testing and Materials (ASTM International) F877 and F1807
- Listed by the NSF International to NSF Standards 14 and 61 for use in potable water system
- Listed by NSF International to be in compliant to the Uniform Plumbing Code
- Labeled B137.5 which indicates that it is compliant to the CSA Standards B137.5
