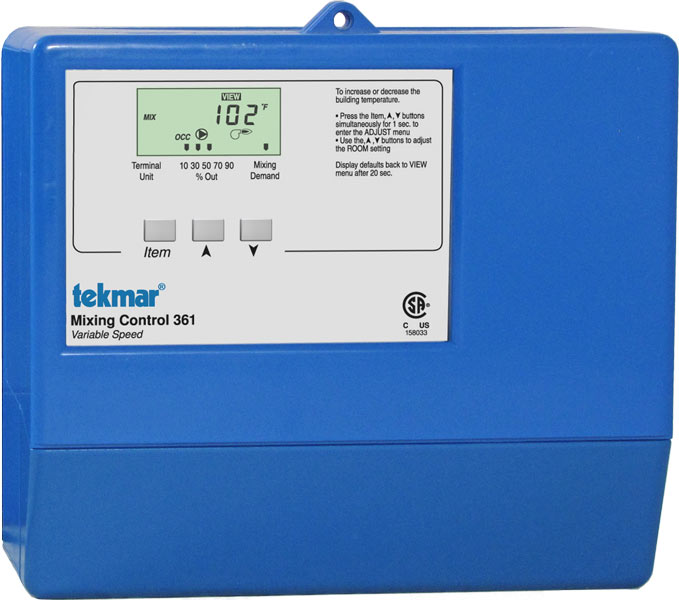

361

The Mixing Control 361 is designed to operate a mixing pump using Outdoor Temperature Reset. It can be used in applications ranging from in-floor radiant to commercial baseboard systems for Boiler Return Protection with full reset. This control regulates a single heating water temperature through Mixing Outdoor Reset. It provides mixing by speeding up or slowing down a single permanent capacitor (standard wet rotor) circulator, and provides control of the mix system pump.

• Outdoor temperature reset, indoor temperature feedback (with optional indoor sensor)
• Warm weather shut down, boiler load control
• Automatic boiler differential, variable speed pump control
• Powered mixing system pump output, quick setup for easy installation and programming of control
• User comfort adjustment to increase or decrease building space temperature
• Advanced settings to fine-tune building requirements
• Test sequence to ensure proper component operation
• Setback input for energy savings
• CSA C US certified (approved to applicable UL standards)
