Tekmar Mixing Control - Floating Action

    616.08 616.08 616.08 USD

    616.08

    This combination does not exist.

    Add to Cart

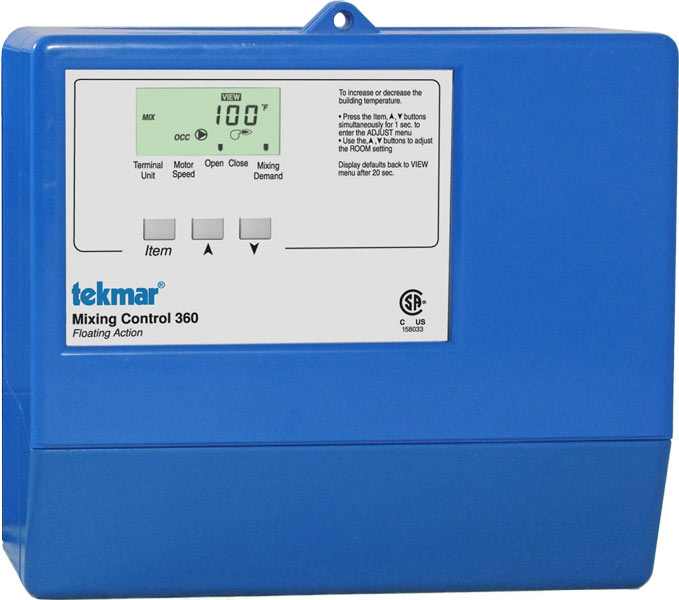

    Tekmar Mixing Control - Floating Action



    Specifications

    ControlMicroprocessor control. This is not a safety (limit) control
    Packaged weight3.1 lb. (1420 g)
    Dimensions6-5/8” H x 7-9/16” W x 2-13/16” D (170 x 193 x 72 mm)
    EnclosureBlue PVC plastic, NEMA type 1
    ApprovalsCSA C US, meets class B: ICES & FCC Part 15
    Ambient conditionsIndoor use only, 32 to 104°F (0 to 40°C), RH ≤90% Noncondensing
    Power supply120 V (ac) ±10%, 50/60 Hz, 1300 VA
    Floating output24 V (ac) 0.34 A 8 VA
    Relays240 V (ac) 10 A 1/3 hp
    Demand20 to 260 V (ac) 2 VA
    SensorsNTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892
    –IncludedOutdoor Sensor 070 and 2 of Universal Sensor 082
    –Optionaltekmar type #: 033, 076, 077, 084
    WarrantyLimited 3 Year (See D360 for full warranty)

    Mixing Control 360

    The Mixing Control 360 is designed to operate a mixing valve using Outdoor Temperature Reset. It can be used in applications ranging from in-floor radiant to commercial baseboard systems for Boiler Return Protection with full reset. This control regulates a single heating water temperature through Mixing Outdoor Reset. It controls the mixing by opening or closing a floating action type mixing valve actuator (3 or 4 way valves), and also provides control of the mix system pump.


    Features

    • CSA C US certified (approved to applicable UL standards)

    • Test sequence to ensure proper component operation

    • Floating action mixing control, powered mixing system pump output

    • Setback input for energy savings

    • Quick setup for easy installation and programming of control

    • Outdoor temperature reset, indoor temperature feedback (with optional indoor sensor)

    • Warm weather shut down, automatic boiler differential

    • User comfort adjustment to increase or decrease building space temperature

    • Advanced settings to fine-tune building requirements
