334

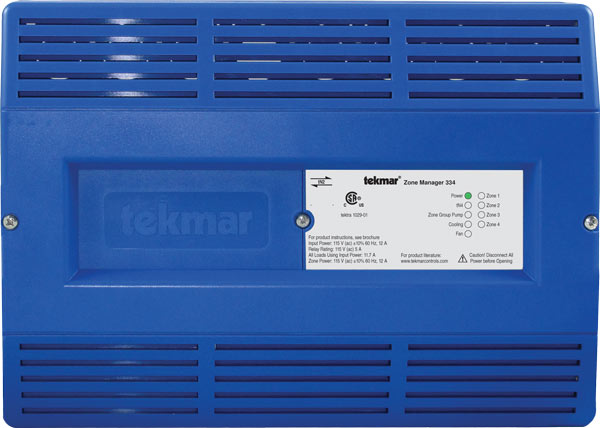

The tekmarNet® 2 Zone Manager 334 is designed to provide a zoning solution for 2-wire tekmarNet ® 2 thermostats used in heating systems. It can be used in applications ranging from baseboard zones, to remote manifolds for radiant heating. This control energizes up to 4 zone valves or zone pumps. It is capable of providing power for up to 4 tekmarNet® 2 thermostats and energizing their respective 24 V (ac) or 115 V (ac) zones, as well as providing a powered Zone Group Pump (powered end switch) contact to enable an external device such as a manifold pump.

• Only requires 2 wires per zone
• For use with tekmarNet® 2 thermostats only
• tekmarNet® 4 compatible
• Four zone valves or zone pumps
• Time delay for thermal motor zone valves
• Provides power to tekmarNet® 4 reset module
• CSA C US Certified for use in USA and Canada
