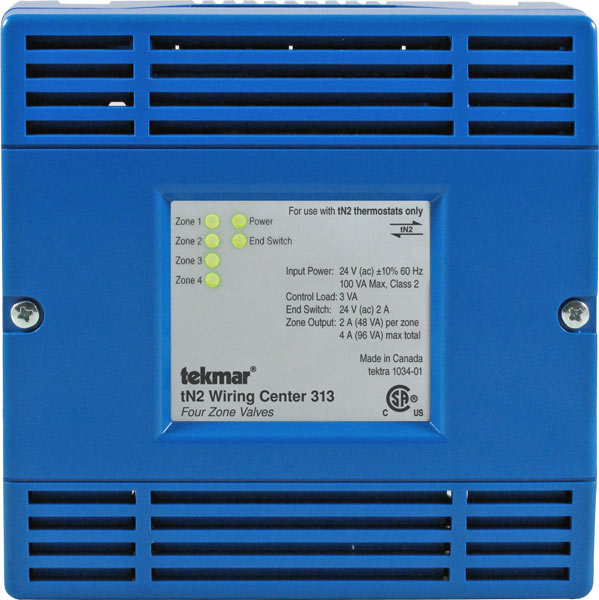

Tekmar tN2 Wiring Center -Four Zone Valves

    299.68 299.68 299.68 USD

    299.68

    This combination does not exist.

    Add to Cart

    Tekmar tN2 Wiring Center -Four Zone Valves



    Specifications

    ControlMicroprocessor control. This is not a safety (limit) control
    Packaged weight1.4 lb
    Dimensions5.5” H x 5.5” W x 2.25” D
    EnclosureBlue PC+ABS plastic, NEMA type 1
    ApprovalsCSA C US, meets class B: ICES & FCC Part 15
    Ambient conditionsIndoor use only, 32 to 122°F (0 to 50°C), RH ≤90% Noncondensing
    Power supply24 V (ac) ±10%, 60 Hz, 3 VA min, 99 VA max, Class 2
    Zone valve load24 V (ac) 2 A, maximum combined current (zones 1 to 4): 4 A
    End switch relay24 V (ac) 2 A
    Zone group pump115 V (ac) 5 A
    SensorsNTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892
    –Included SensorsNone
    -Optional SensorsOutdoor Sensor 070
    WarrantyLimited 3 Year (See D313 for full warranty)

    The tekmarNet® 2 Wiring Center 313 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to remote manifolds for radiant heating. This product provides power for up to four tekmarNet ® 2 thermostats, and up to four 24 V (ac) zones valve outputs, as well as providing an end switch closure to enable an external device such as a boiler. A line voltage output on the back of the control can operate a zone group pump if required. An outdoor sensor input is included and provides the outdoor air temperature reading on each thermostat when an optional outdoor sensor is installed.


    Features


    • CSA C US certified for use in USA and Canada

    • Powered zone group pump output

    • External diagnostic LEDs

    • tN4 expansion terminals

    • Supports two-stage tekmarNet® 2 thermostats

    • Outdoor sensor input

    • Only requires 2 wires per zone, four 24 V (ac) powered zone outputs

    • For use with tekmarNet® 2 thermostats only

    • Isolated end switch



    Tekmar Zoning Solution
