Tekmar tekmarNet® 4 Setpoint Control - One Stage Heat/Cool

    351.43 351.43 351.43 USD


    This combination does not exist.

    Add to Cart

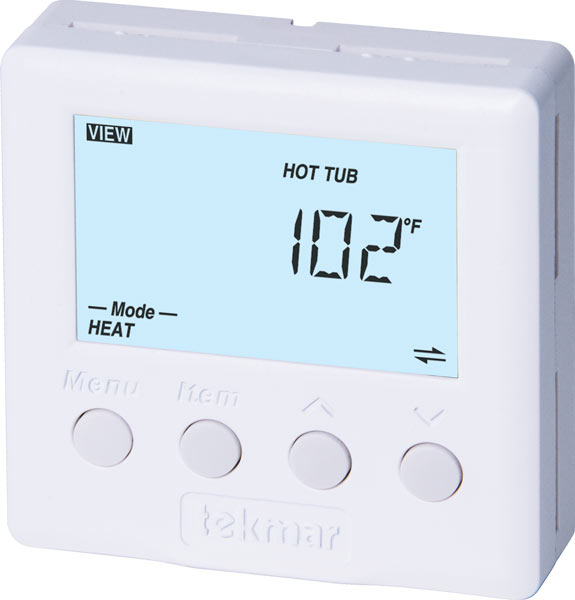

    Tekmar tekmarNet® 4 Setpoint Control - One Stage Heat/Cool


    Agency ApprovalsCSA C US, meets Class B: ICES & FCC Part 15
    Ambient ConditionsIndoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 92 percent to 104 degrees F (40 degrees C), and 50 percent above 104 degrees F (40 degrees C), Altitude less than 9840 ft. (3000 m), Pollution Degree 2
    Control TypeMicroprocessor control, this is not a safety (limit) control
    Dimensions2-7/8" H x 2-7/8" W x 13/16" D (73 x 73 x 21 mm)
    Enclosure MaterialWhite PVC plastic
    Enclosure NEMA RatingNEMA 1
    Hydronic - HVAC Control TypetekmarNet4 Setpoint Control
    Power Supply24 V (ac) plus / minus 10 percent, 50/60 Hz, 3.2 VA, NEC / CEC Class 2
    Relay24 V (ac) 2 A
    SensorNTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892

    The tekmarNet® 4 Setpoint Control 162 is designed to operate a single piece of heating or cooling equipment in order to maintain a setpoint temperature. It can be used in applications, including heating a swimming pool, maintaining a chilled water storage tank, and maintaining a constant slab temperature in a commercial car wash bay. This product regulates a constant water temperature for heating or cooling using one of 6 preset modes (setpoint on/off, hot tub, DHW, setpoint PWM, floor, pool). It has 2 relays (rated at 24 V, 2 A) and uses relay No.1 to control the heating/cooling device, while relay No. 2 can be used for devices such as a DHW re-circulation pump.


    • Hot tub operation, DHW tank operation

    • WWSD (if connected to tekmarNet® network with outdoor sensor)

    • Exercising, scenes supported

    • Temperature sensor input, programmable Setback Schedule

    • Floor operation, pool operation

    • Pulse width modulation, system pump control

    • tekmarNet® 4 and tekmarNet ® 2 compatible, on / off differential

    • CWSD (if connected to tekmarNet® network with outdoor sensor)

    • One stage heat or cool, 5 different levels of priority
