Tekmar Mixing Setpoint Control - Floating Action

    397.78 397.78 397.78000000000003 USD

    397.78

    This combination does not exist.

    Add to Cart

    Tekmar Mixing Setpoint Control - Floating Action



    Specifications

    Agency ApprovalsCSA C US, meets class B: ICES & FCC Part 15
    Ambient ConditionsIndoor use only, -20 to 120 degrees F (-30 to 50 degrees C), RH less than or equal to 90 percent Non-condensing
    Control TypeMicroprocessor control, this is not a safety (limit) control
    Dimensions4-3/4" H x 2-7/8" W x 7/8" D (120 x 74 x 22 mm)
    Enclosure MaterialWhite PVC plastic
    Enclosure NEMA RatingNEMA 1
    Power Supply24 V (ac) plus / minus 10 percent, 50/60 Hz, 3 VA, 24 V (dc) plus / minus 10 percent, 0.03 A
    Relay240 V (ac) 10 A max, 1/3 hp
    SensorNTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892

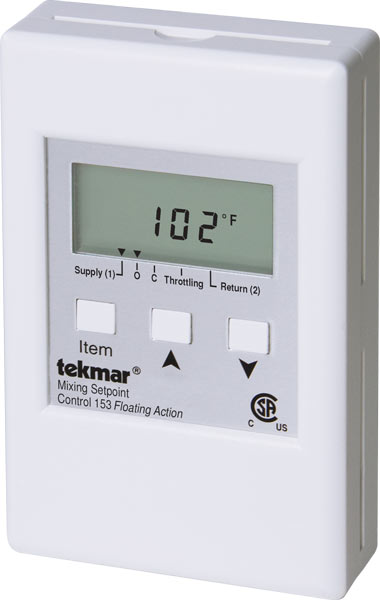

    Mixing Setpoint Control 153

    The Mixing Setpoint Control 153 is designed to operate a mixing device to maintain a setpoint water temperature. It can be used in applications ranging from boiler protection of cast iron boilers to maintaining setpoint in a heat pump system. This product is capable of operating a floating action motor for a mixing valve or damper through dry contact open and close relays.


    Features

    • Digital display

    • Boiler return protection

    • Floating action mixing

    • Ten year memory backup
