132538AFC

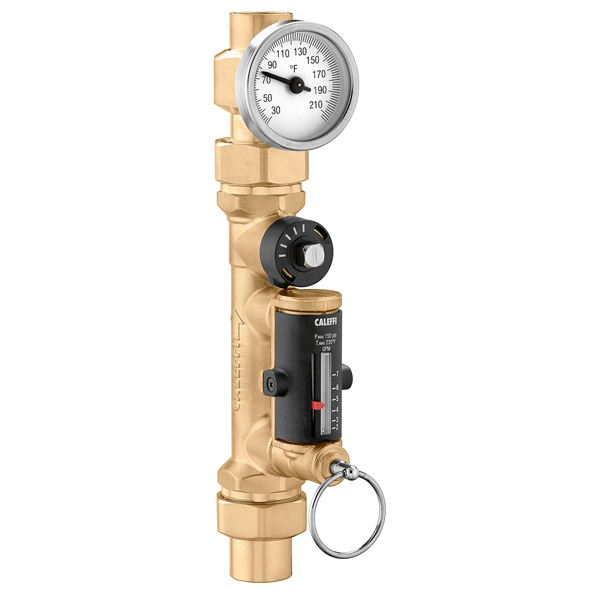

Caleffi QuickSetter+ Balancing Valve (low-lead) w/Temp Gauge and Check, 3/4 in. Sweat

    229.95 229.95 229.95000000000002 USD

    229.95

    This combination does not exist.

    Add to Cart

    Caleffi QuickSetter+ Balancing Valve (low-lead) w/Temp Gauge and Check, 3/4 in. Sweat



    Details

    BodyDZR low-lead brass
    Ballstainless steel
    Ball control stembrass, chrome plated
    Ball seal seatPTFE
    Control stem guidePSU
    Sealsperoxide-cured EPDM
    Suitable Fluidswater, glycol solutions
    Max. percentage of glycol50%
    Max. working pressure150 psi
    Working temperature range14 - 230°F
    Flow rate range unit of measurement½ - 1 ¾ gpm
    Accuracy±10%
    Control stem angle of rotation90°
    Control stem adjustment wrench9 mm
    Main connections¾” sweat union
    Length9-13/16"
    Fully open Cv1.0
    Max working pressure: 150 psi
    Temp range: 14° - 230°F
    Max percentage of glycol: 0.5
    With optional temperature gauge:
    Diameter: 3/4 in Sweat
    Gauge scale: 30° - 210°F
    Gauge accuracy: ±6°F

    Balancing valve with flow meter

    DZR low-lead brass valve body and flow meter.

    Direct reading of flow rate.
    No sight gauge clouding or scaling.

    Rotatable stainless steel flow rate adjuster.
    Inlet flow check valve.
    Graduated scale flow meter with magnetic movement flow rate indicator.

    With optional temperature gauge:
    Diameter:  1/2 in - 2 in.
    Gauge scale:  30° - 210°F
    Gauge accuracy:  ±6°F

    Compliance with the following standards:

    • NSF/ANSI 372 - Drinking Water System Components - Lead Content
    • Reduction of Lead in Drinking Water Act - California Health and Safety Code 116875
    • S.3874 - Reduction of Lead in Drinking Water Act
    • Vermont Act 193 - The Lead in Plumbing Supplies Law
    • Maryland's Lead Free Law Hb.372
