Tekmar 10K Temperature Simulator

    469.47 469.47 469.47 USD

    469.47

    This combination does not exist.

    Add to Cart

    Tekmar 10K Temperature Simulator



    Packaged weight0.4 lb. (180 g)
    Dimensions4-3/4" H x 2-7/8 W x 1-7/16" D (121 x 73 x 37 mm)
    EnclosureWhite PVC plastic with 24" wire, NEMA type 1
    Sensor simulationNTC thermistor, 10 k? @ 77°F (25°C ±0.2°C) ß=3892
    Yellow45 to 85°F (7 to 29°C) incremental
    Blue-40 to 90°F (-40 to 32°C) incremental
    Red95 to 230°F (35 to 110°C) incremental
    WarrantyLimited 3 Year Warranty

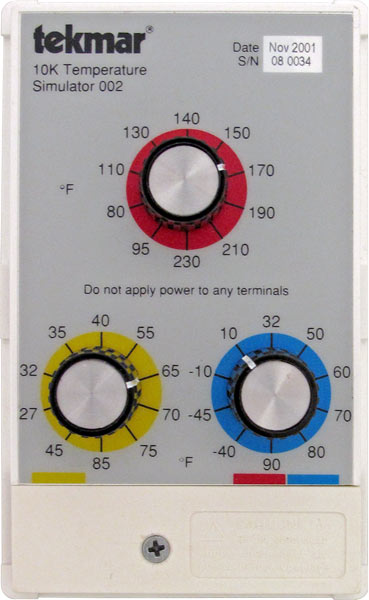

    10K Temperature Simulator

    The 10K Temperature Simulator 002 is designed to be used to test any tekmar control using 10K thermistor sensors. This can be used to troubleshoot controls in the field, or to set up a simulation on a workbench and model control behavior. The main use of this product is to simulate control operation. There are 3 separate sensors that can be simulated using the rotary dials on the 002

    Features

    • 3 separate temperature dials
    • Works with any tekmar control that uses 10K sensors
