Watts Thermal Pro Standard 3 Circuit SS Manifold, Actuators, Zone Pump Panel, Mix Valve

    3,574.80 3,574.80 3574.8 USD


    This combination does not exist.

    Add to Cart

    Watts Thermal Pro Standard 3 Circuit SS Manifold, Actuators, Zone Pump Panel, Mix Valve


    Height29.5 in.
    Width41.5 in.
    Depth4.5 in.
    End 1 Connection TypeNPT
    End 1 Connection Type1 1/4 in.
    End 2 Connection TypeNPT
    End 2 Connection Size1 1/4 in.

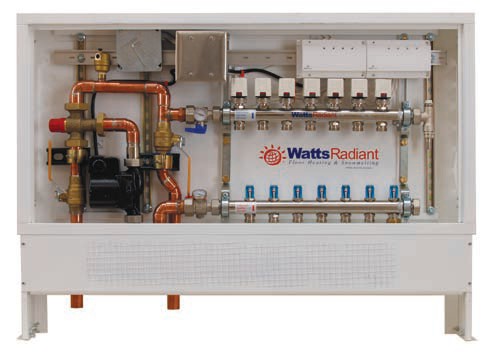

    Thermal Pro Standard Zone Panels - Manifold w/ Pump, Mix Valve, and Actuators


    The Thermal Pro Standard Zone Panel is the ultimate in radiant distribution, allowing you to deliver thermostatically adjusted water to multiple zones using the included zone pump. This panel would typically be used when the mechanical room does not have a dedicated pump to supply the heated water, and is neatly housed in a powdercoated steel enclosure with latching door.

    The enclosure can be mounted on a wall or recessed between studs.

    The Thermal Pro Standard Zone Panel available with 2 to 7 circuits and comes with the individual circuit actuators and zone control all factory-wired; one actuator to one zone. Controlling more than one zone with a single thermostat is as easy as jumping the appropriate terminals in the control.

    See the Zone Valve Actuator Control instructions for further details.

    Each panel includes:

    • 1 in. field-adjustable, thermostatic mix valve
    • Watts Radiant zone pump
    • Automatic air vent valve
    • 1 in. Stainless Steel manifold
    • Supply and return manifold trunk ball valves
    • Supply and return manifold mini temperature gauges
    • Vent/purge assembly on supply manifold
    • Flow meters (0-2gpm) on each circuit
    • Pre-wired zone relay control with 40 VA transformer
    • Pre-wired circuit actuators on each circuit
    • White powder-coated steel enclosure with cover
