ZC-N-7

https://www.pexheat.com/web/image/product.template/15513/image_1920?unique=623536c

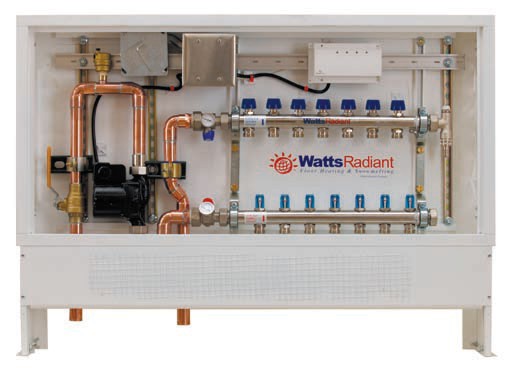

Watts Thermal Pro Standard 7 Circuit Stainless Steel Manifold with Zone Pump Panel

$ 3,118.27 $ 3,118.27 3118.27 USD

$ 3,118.27

Not Available For Sale

    This combination does not exist.

    Contact Us

    ZC-N-7

    Watts Thermal Pro Standard 7 Circuit Stainless Steel Manifold with Zone Pump Panel

      $ 3,118.27 $ 3,118.27 3118.27 USD

      $ 3,118.27

      Not Available For Sale

      This combination does not exist.

      Watts Thermal Pro Standard 7 Circuit Stainless Steel Manifold with Zone Pump Panel

      Specifications:

      Height29.5 in.
      Width41.5 in.
      Depth4.5 in.
      End 1 Connection TypeNPT
      End 1 Connection Type1 1/4 in.
      End 2 Connection TypeNPT
      End 2 Connection Size1 1/4 in.

      Thermal Pro Standard  Zone Panels - Manifold with Pump

      Description

      The Thermal Pro Standard Zone panel is used when the manifold does not have a dedicated supply pump in the boiler room. This manifold is neatly housed in a powder-coated steel enclosure with latching door. The enclosure can be mounted on a wall or recessed between studs.

      The Thermal Pro Standard Zone Panel is designed to serve one zone, and is available with 2 to 7 circuits.

      29.5 in. high x 41.5 in. wide x 4.5 in. deep

      Each panel includes:

      • Watts Radiant zone pump
      • Automatic air vent valve
      • 1 in. Stainless Steel manifold
      • Supply and return manifold trunk ball valves
      • Supply and return manifold mini temperature gauges
      • Vent/purge assembly on supply manifold
      • Flow meters (0-2gpm) on each circuit
      • Balancing valves on each circuit
      • White powder-coated steel enclosure with cover
