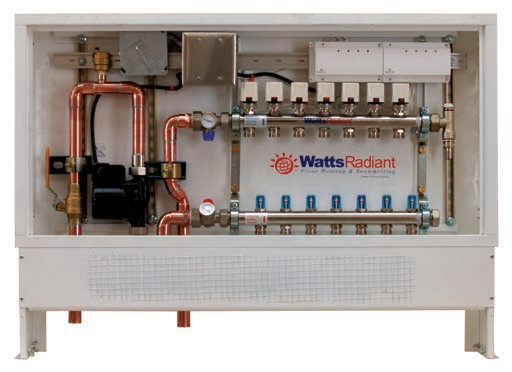

    Watts Thermal Pro Standard 6 Circuit Stainless Steel Manifold with Zone Pump Panel, Actuators


    Height29.5 in.
    Width41.5 in.
    Depth4.5 in.
    End 1 Connection TypeNPT
    End 1 Connection Type1 1/4 in.
    End 2 Connection TypeNPT
    End 2 Connection Size1 1/4 in.

    Thermal Pro Standard Zone Panels - Manifold w/ Pump & Actuators


    The Thermal Pro Standard Zone Panel allows you to supply two or more different zones from one manifold location using the included zone pump. This panel would typically be used when the mechanical room does not have a dedicated pump to supply the heated water. It is neatly housed in a powder-coated steel enclosure with latching door. The enclosure can be mounted on a wall or recessed between studs.

    The Thermal Pro Standard Zone Panel is available with 2 to 7 circuits and comes with the individual circuit actuators and zone control all factory wired; one actuator to one zone.

    Controlling more than one zone with a single thermostat is as easy as jumping the appropriate terminals in the control. See the Zone Valve Actuator Control instructions for further details.

    29.5 in. high x 41.5 in. wide x 4.5 in. deep

    Each panel includes:

    • Watts Radiant zone pump
    • Automatic air vent valve
    • 1 in. Stainless Steel manifold
    • Supply and return manifold trunk ball valves
    • Supply and return manifold mini temperature gauges
    • Vent/purge assembly on supply manifold
    • Flow meters (0-2gpm) on each circuit
    • Pre-wired zone relay control with 40 VA transformer
    • Pre-wired circuit actuators on each circuit
    • White powder-coated steel enclosure with cover
