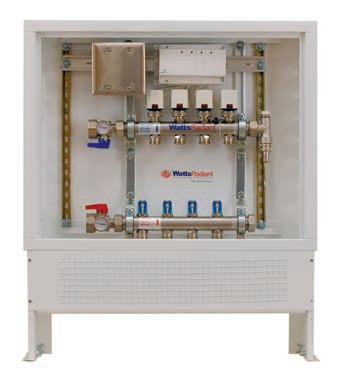

Thermal Pro Standard Manifold with Actuators

Description

The Thermal Pro Standard Manifold Panel is used when the manifold must serve multiple rooms with a dedicated supply pump in the boiler room. This manifold is neatly housed in a powder-coated steel enclosure with latching door. The enclosure can be mounted on a wall or recessed between studs.

The Thermal Pro Standard Manifold Panel is designed to serve multiple zones, and is available with 2 to 12 circuits.

29.5 in. high x 41.5 in. wide x 4.5 in. deep

Each panel includes:

• 1 in. Stainless Steel manifold
• Supply and return manifold trunk ball valves
• Supply and return manifold mini temperature gauges
• Vent/purge assembly on supply manifold
• Flow meters (0-2gpm) on each circuit
• Balancing valves on each circuit
• White powder-coated steel enclosure with cover
• Zone Actuators on eachcircuit
