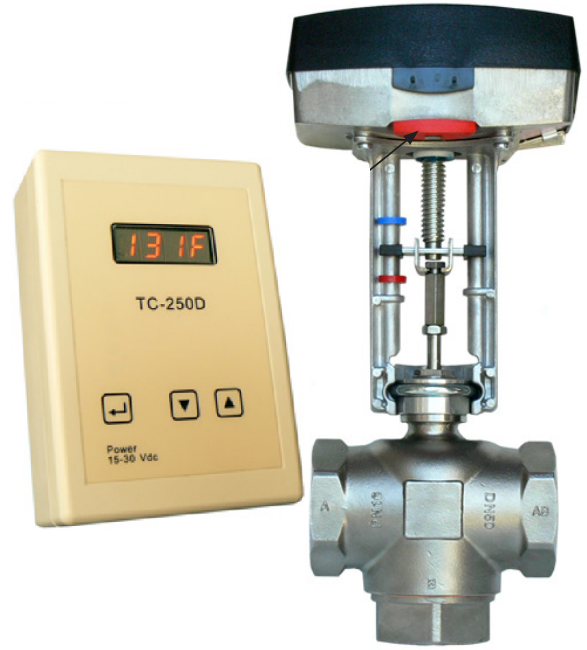

TVS43 DHW Control System 2 1/2 in. Valve

    2,168.40 2,168.40 2168.4 USD


    This combination does not exist.

    Add to Cart

    TVS43 DHW Control System 2 1/2 in. Valve


    Power Supply15 - 30 Vdc
    Power consumption75mA
    Sensor sample rate10/ sec.
    Analog output (AO) Direct Acting0-10 or 2-10 Vdc
    Enclosure dimensions3 in.(W),4.25 in.(H),1.5 in.(D)
    Power supply24 Vac, 25 VA
    Control Signal Input0/2 - 10 Vdc
    Output16 Vdc to controller
    Stem force200 lb.
    Run time (for 3/4 in. stroke)20 seconds
    Cold inlet40 ° F - 80 ° F
    Hot inlet120 ° F - 205 ° F
    Outlet temp. range95 ° F- 140 ° F
    Valve Size2 1/2 in.
    Flow Coefficient CV65.0
    Flow Range GPM130 - 250
