TVS43-020

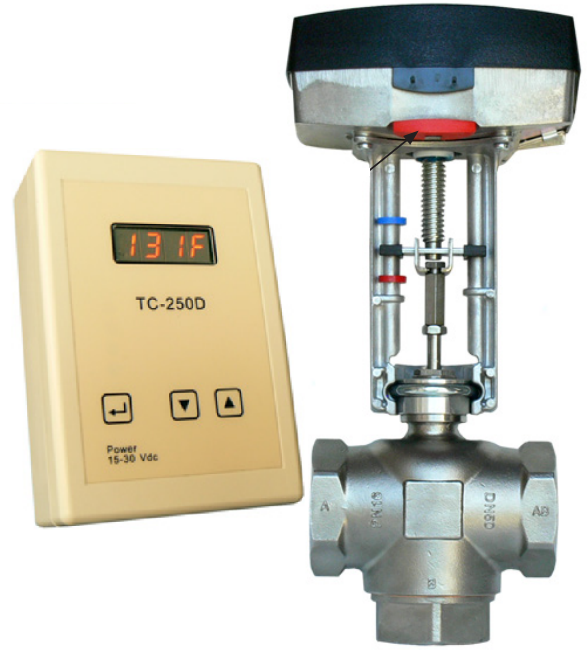

TVS43 DHW Control System 3/4 in. Valve

    1,274.40 1,274.40 1274.4 USD

    1,274.40

    This combination does not exist.

    Add to Cart

    TVS43 DHW Control System 3/4 in. Valve



    Specifications:

    ControlerTC250D
    Power Supply15 - 30 Vdc
    Power consumption75mA
    SensorSTP120-70
    Sensor sample rate10/ sec.
    Analog output (AO) Direct Acting0-10 or 2-10 Vdc
    Enclosure dimensions3 in.(W),4.25 in.(H),1.5 in.(D)
    ActuatorVM800
    Power supply24 Vac, 25 VA
    Control Signal Input0/2 - 10 Vdc
    Output16 Vdc to controller
    Stem force200 lb.
    Run time (for 3/4 in. stroke)20 seconds
    Cold inlet40 ° F - 80 ° F
    Hot inlet120 ° F - 205 ° F
    Outlet temp. range95 ° F- 140 ° F
    Valve Size3/4 in.
    Flow Coefficient CV7.3
    Flow Range GPM13 - 25
