    HPS Primary/Secondary 2 Zone Station

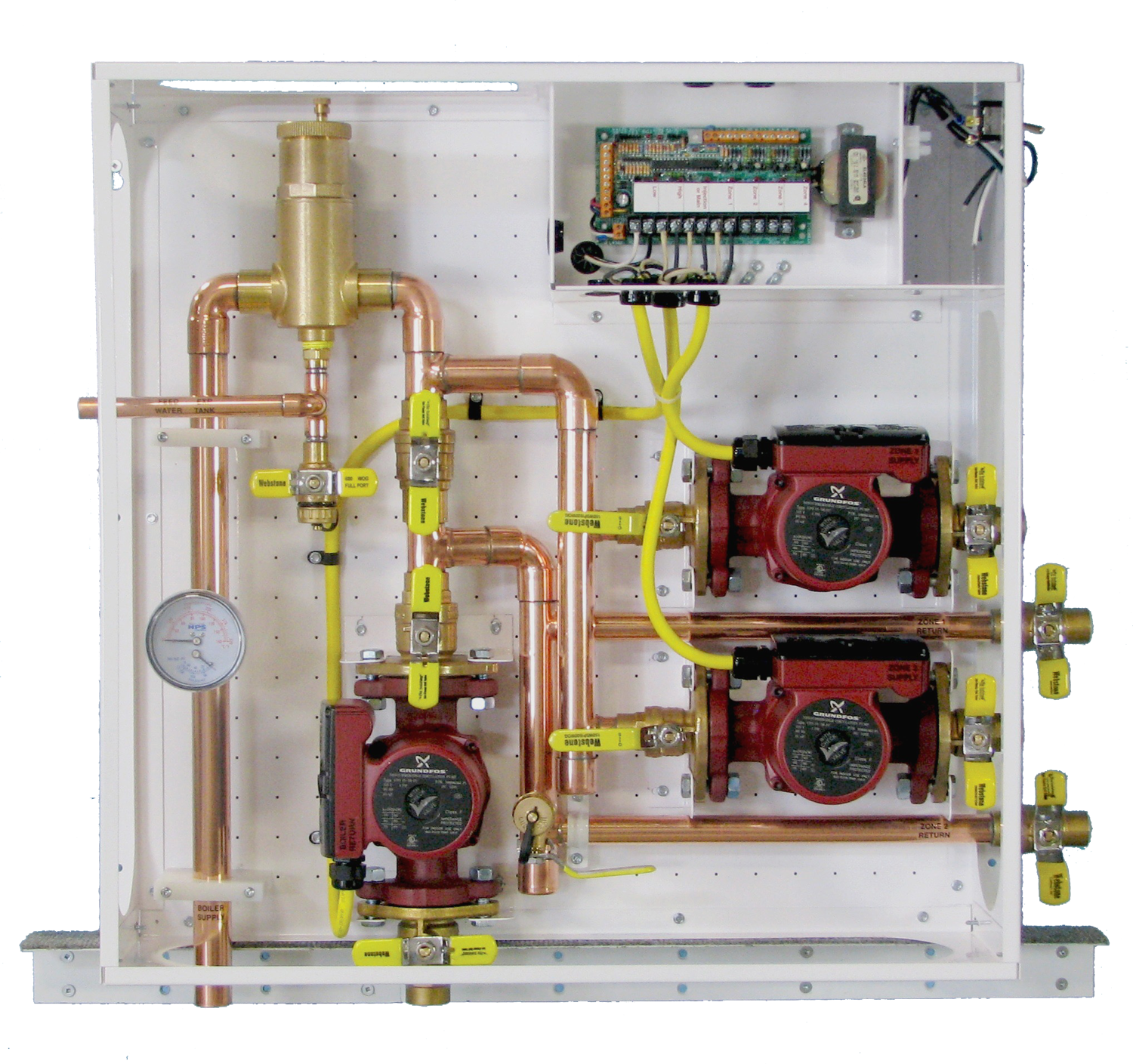

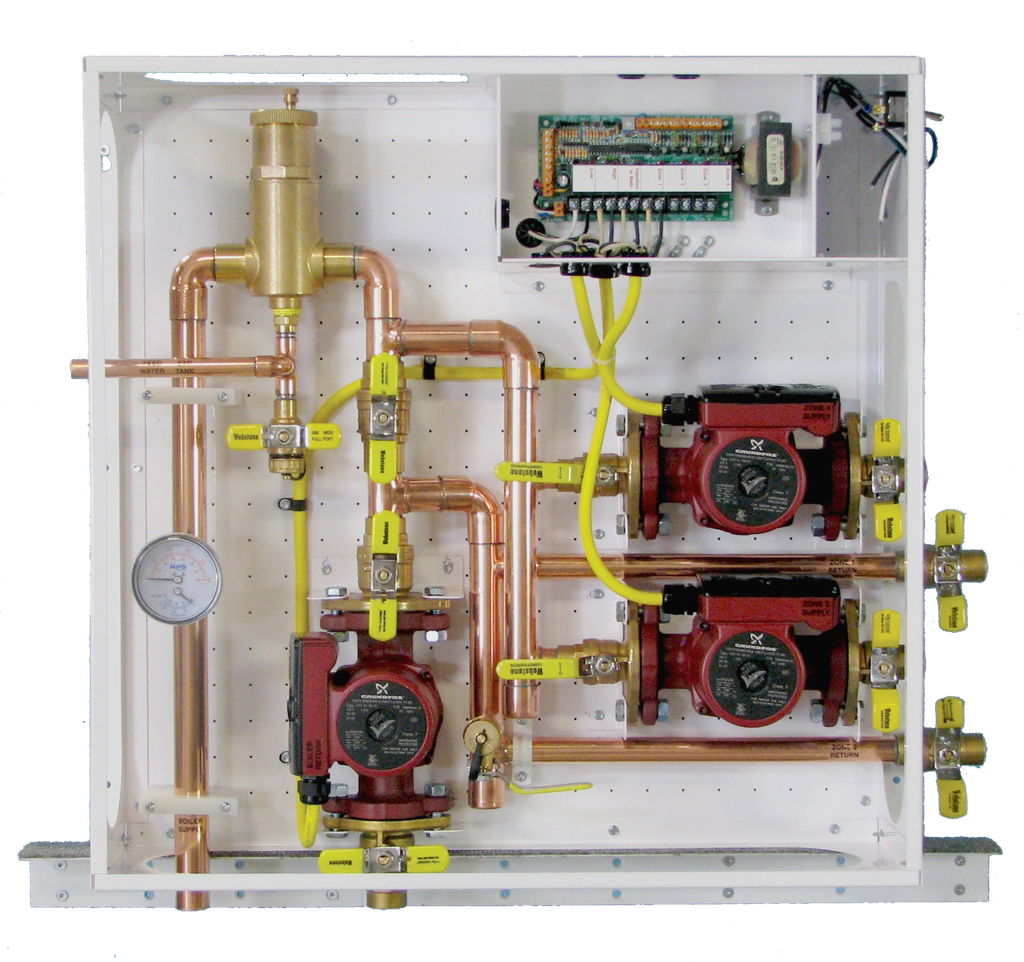

    HPS PSS Primary/Secondary Pump Station, 2 Zone

    • Consist of a pre-piped primary loop and the choice of 1 to 6 secondary zones
    • "NEW" 4 & 6 zone Electronic Relay Control Boards allow each zone to be set, supplying either high or low temperature output from a condensing boiler
    • Left or right side supply and return to a condensing boiler
    • All field settings can be adjusted using jumpers
    • Priority with "Priority Safe Feature"
    • Pump Duty Cycle Timer Options
    • Low Water Cutoff 24V Access Option
    • LED Indicator Lights
    • White Powder Coat Appliance Finish
    • Organic Acid Bath Polished Copper Piping
    • 1" Flange Body Pumps Grundfos "UPS15-58FC" Standard - Can be upgraded to UPS26-99FC/BFC, UPS15-55SFC or Alpha 15-55F pumps
    • Webstone "Isolator" Ball Valves
    • System Purge Valve
    • Return Zone Ball Valves
    • Integral Pump Flow Check Valves
    • Tridicator
    • Air Eliminator
