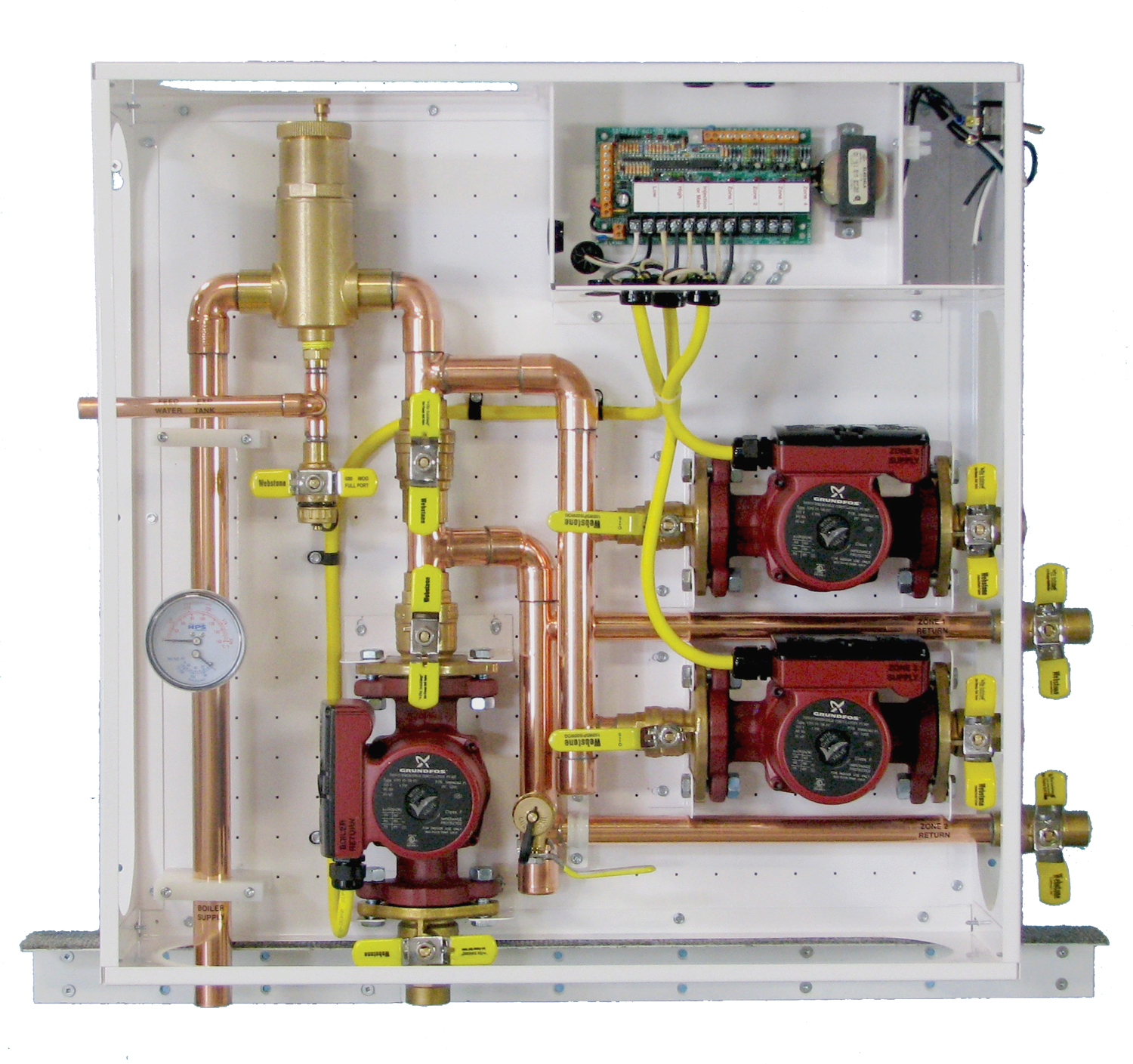

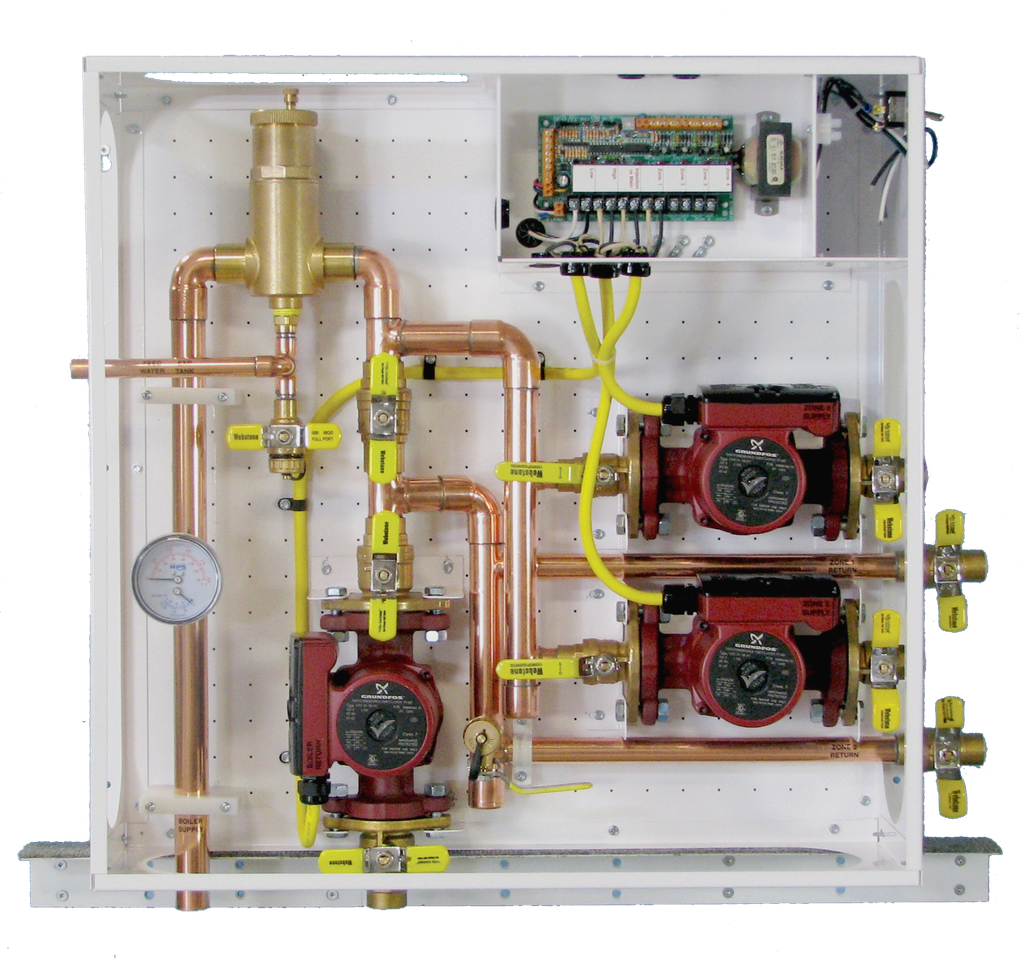

    HPS Primary/Secondary 1 Zone Station

    HPS PSS Primary/Secondary Small Condensing Boiler Station, 1 Zone

    • Consist of a pre-piped primary loop and the choice of
      1 or 2 secondary zones
    • Left or right side supply and return to a condensing boiler
    • 27" x 25" x 8.5" box for wall mount
    • White Powder Coat Appliance Finish
    • Organic Acid Bath Polished Copper Piping
    • One secondary zone models (PSS-1LN & PSS-1RN) come with a standard 2 Zone Electronic Relay Control Board which supplies one temperature
    • Two secondary zone models (PSS-2LN & PSS-2RN) come with an Electronic Relay Control Board which allows each zone to be set, supplying either high or low temperature output from the condensing boiler
    • All field settings can be adjusted using jumpers
    • Pump Duty Cycle Timer Options
    • LED Indicator Lights
    • 3/4" & 1" Flange Body Pumps Grundfos "UPS15-58FC" Standard - Can be upgraded to UPS26-99FC/BFC,
      UPS15-55SFC or Alpha 15-55F pumps
    • Pump Isolator Ball Valves
    • System Purge Valve
    • Return Zone Ball Valves
    • Integral Pump Flow Check Valves
    • Tridicator
    • Air Eliminator
