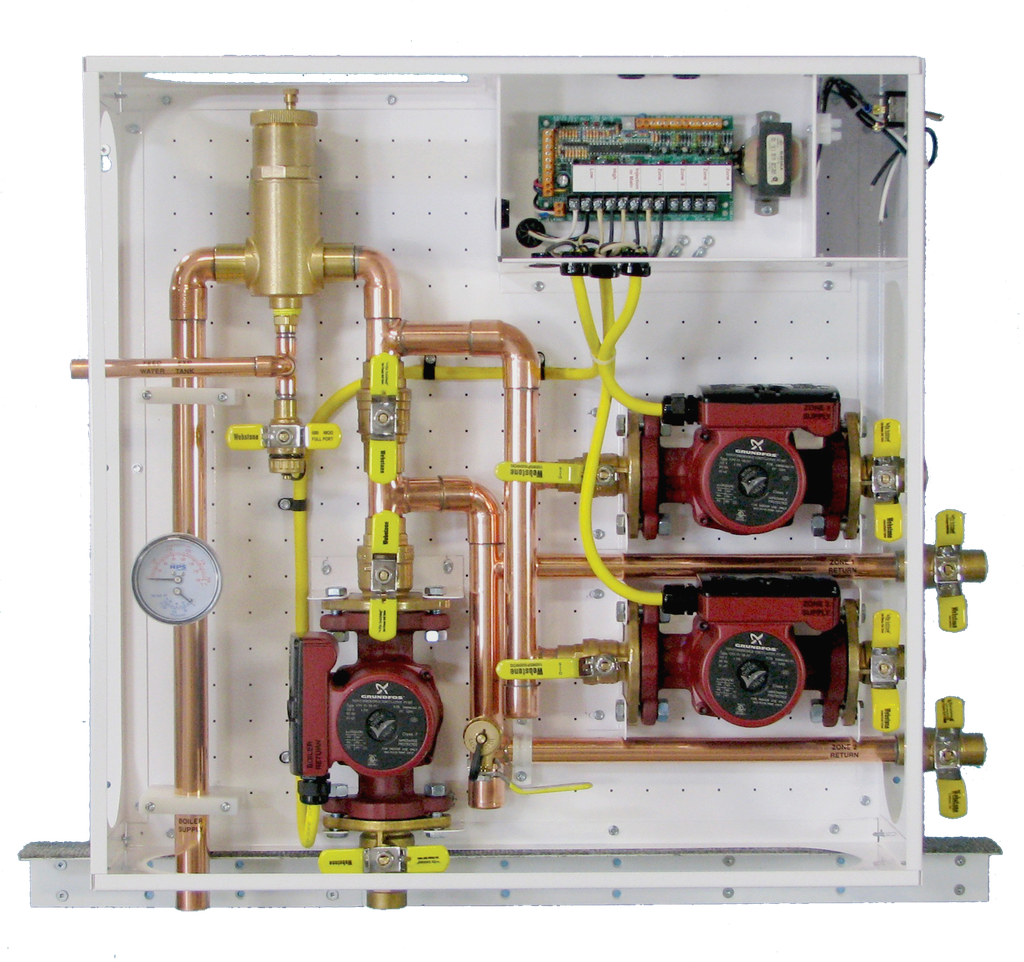

PSS-1RN (Custom)

HPS PSS Primary/Secondary Small Condensing Boiler Station, 1 Zone

• Consist of a pre-piped primary loop and the choice of
  1 or 2 secondary zones
• Left or right side supply and return to a condensing boiler
• 27" x 25" x 8.5" box for wall mount
• White Powder Coat Appliance Finish
• Organic Acid Bath Polished Copper Piping
• One secondary zone models (PSS-1LN & PSS-1RN) come with a standard 2 Zone Electronic Relay Control Board which supplies one temperature
• Two secondary zone models (PSS-2LN & PSS-2RN) come with an Electronic Relay Control Board which allows each zone to be set, supplying either high or low temperature output from the condensing boiler
• All field settings can be adjusted using jumpers
• Pump Duty Cycle Timer Options
• LED Indicator Lights
• 3/4" & 1" Flange Body Pumps Grundfos "UPS15-58FC" Standard - Can be upgraded to UPS26-99FC/BFC,
  UPS15-55SFC or Alpha 15-55F pumps
• Pump Isolator Ball Valves
• System Purge Valve
• Return Zone Ball Valves
• Integral Pump Flow Check Valves
• Tridicator
• Air Eliminator
