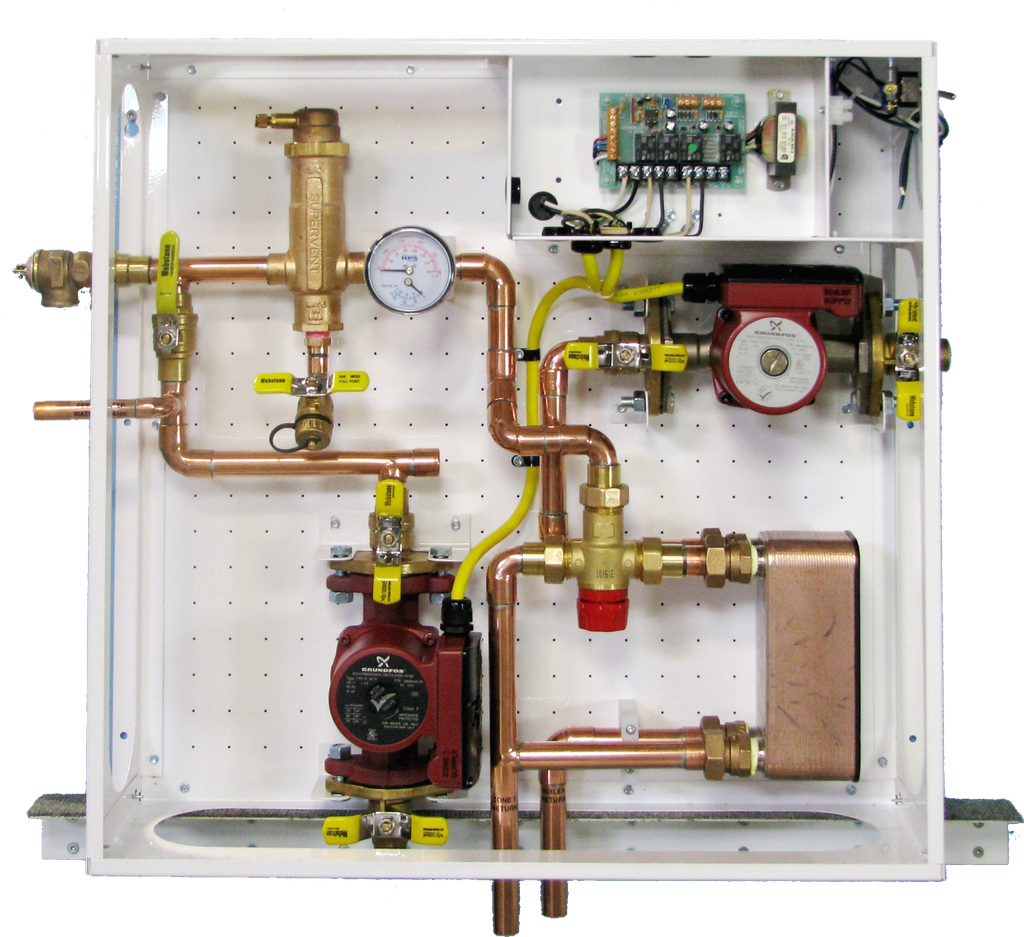

Heat Exchanger Pump Station, Stainless Domestic Pump, Auto Sensing
Heating Pump
- Used for separating hydronic systems
- Consist of a pre-piped and pre-wired unit to be used with
Primary/Secondary piped hydronic systems
- Dimensions: 27" x 25" x 8.5"
- Available with or without a heating mixing valve
- Comes with one or two heating zones and a primary domestic circulator
- Available with a 20, 30 or 50 plate heat exchanger
- White Powder Coat Appliance Finish
- Organic Acid Bath Polished Copper Piping
- 3/4" Flange Body Pumps UPS 15-58FC on heating side of exchanger &
a UPS 15-55SFC (Stainless) on the domestic side.
- Pumps can be upgraded.
- Electronic Relay Control Board
- Pump Duty Cycle Timer Options
- LED Indicator Lights
- System Bleed Purge Valve
- Return Ball Valves
- Integral Pump Flow Check Valves
- Additional Components:
- T&P Valve
- Air Eliminator
- Tridicator
Note: Item may differ from Image
