CFV-532

HPS 5 Zone Combo 3-High 2-Low Mixing Valve Pump Panel

    4,603.61 4,603.61 4603.61 USD

    4,603.61

    This combination does not exist.

    Add to Cart

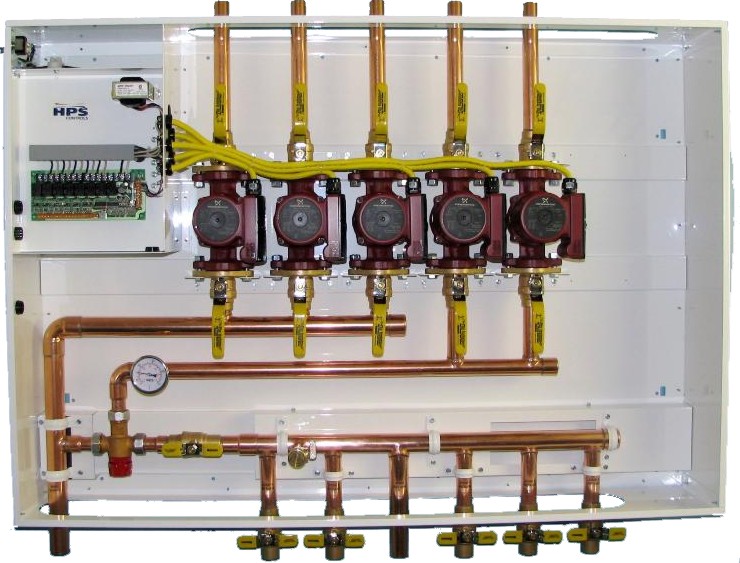

    HPS 5 Zone Combo 3-High 2-Low Mixing Valve Pump Panel



    5 Zone 3-High Temp, 2 Low Temp Mixing Valve, Flanged Pump Zone Control Station

    • 5 zone station model housing
    • White powder coat appliance finish
    • 1" flange body pumps UP15-58FC standard
    • Variable speed injection pump mixing
    • Organic acid bath polished copper piping
    • System bleed purge valve
    • Return riser globe valve with CV setting
    • Webstone "Isolator" ball valve flange set
    • Return zone ball valves
    • Outdoor reset control & sensor
    • Boiler protection control & sensor
    • Mixing thermometer & sensor
    • 6 zone electronic relay control board
    • Priority with priority safe feature
    • Pump duty cycle timer options
    • Low water cutoff 24V access option
    • LED indicator lights
    • Integral pump flow check valves
    Note: Item may differ from Image

    High Temperature Zones

    Used for:

    • High Temp Baseboard or Fan Coil Zones
    • Indirect Domestic Hot Water Heater Zone

    Low Temperature Zones

    Used for:

    • Low Temp In-Floor Heating Zones

    Circuit Board Technology

    New circuit board technology enables the optimum in complete boiler
    system control, and simplifies wiring of the system.

    Features within the circuit board include:

    • 4-6 Zone Electronic Relay Control Board
    • LED Indicator Lights
    • Boiler control contacts
    • Various timer settings for pump exercise
