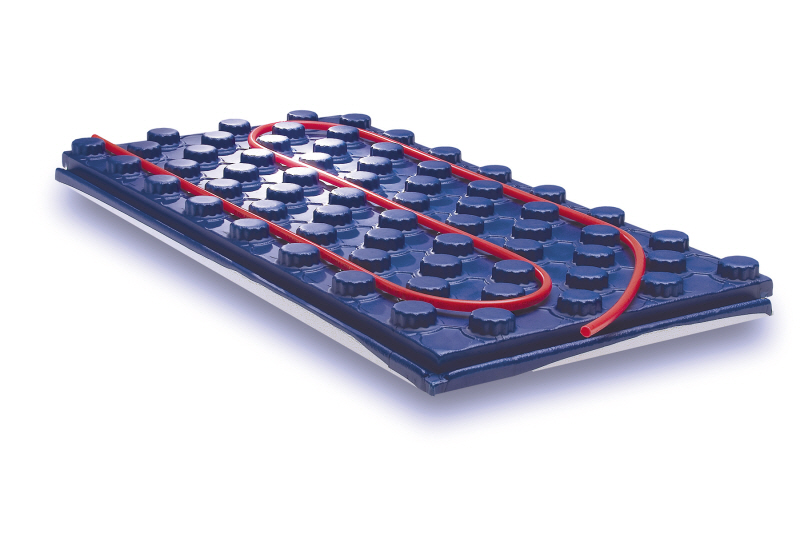

Legend QuickTherm Radiant Installation Panels, 2 ft. x 4 ft., 2.8 in. Thick , Box of 10, 80 sqft

    287.85 287.85 287.85 USD


    This combination does not exist.

    Add to Cart

    Legend QuickTherm Radiant Installation Panels, 2 ft. x 4 ft., 2.8 in. Thick , Box of 10, 80 sqft

    QuickTherm QT200 Data

    Thermal Resistance R-Value/ ASTM C-177 or C-5189 °F . ft2 . hr/Btu
    Thermal Conductivity K-Value.329 Btu/hr . ft .°F
    Density/ASTM C-3032.0 lb/ft3
    Compressive Resistance at 10% Deformation/ASTM D-1621>36 psi
    Water Vapor Permeability/ ASTM E-960.67 Perm-Inches, Max.
    Water Absorption/ASTM C-2724% by Volume Max.
    Dimensional Stability/ ASTM D-21262% Max
    Mold Resistance/ASTM C-1338No Growth
    Panel Size25" x 49"
    Usable Area24" x 48"
    Tubing/ASTMF2623 (PE-RT), ASTM F876 (PEX),ASTM F1281 (PAP)1/2", 5/8", & 3/4"
    Total Thickness Including Pipe Grid2.8"
    Nominal (EPS) Insulation Thickness1"
    Screed Volume in Tube Grid875 Cubic Inches
    Cover StockPolystyrene
    Case Quantity10 panels / 80Sq. Ft.

    Install thousands-of-feet of tubing in just a few hours with QuickTherm™

    QuickTherm™ panels reduce labor costs by making it easy to properly install radiant tubing. There's no need to tie, clip, or staple tubing to the substrate.

    Key Features:

    • One person can quickly put down the panels and install the tubing while walking upright.

    • The tube is better protected than in a wire mesh install

    • Labor Saving - installs 75% faster

    • No bending or crawling

    • Available in R-5 or R-10 thicknesses

    • Eliminates stapling and cable ties

    • 2' x 4' panels are more accommodating to uneven gravel base and subbase surfaces

    • 1/2", 5/8" or 3/4" radiant tubing can be used with QuickTherm™

    • QuickTherm™ panels can reduce installation time by up to 75%. 1,000 feet of tubing installs in just a few hours.

    • QuickTherm™ panels can be drop shipped directly to the job site. Allow up to 3 weeks for delivery.
