166612A

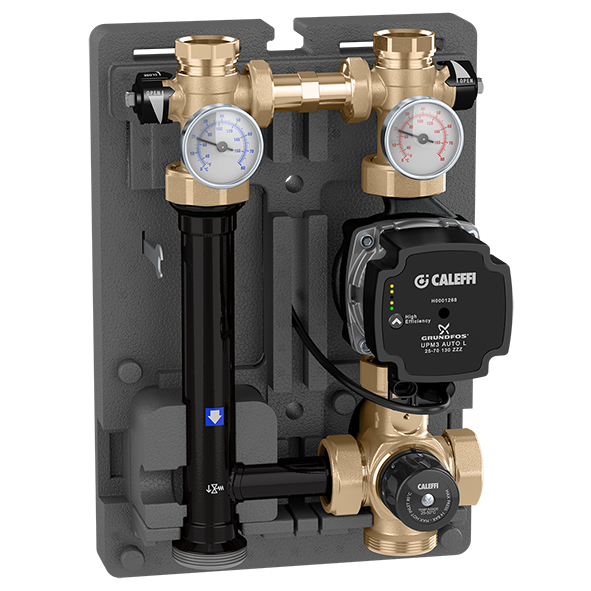

Caleffi HydroMixer thermostatic fixed temperature mixing unit, Alpha 25-55U LH

    1,122.35 1,122.35 1122.3500000000001 USD

    1,122.35

    This combination does not exist.

    Add to Cart

    Caleffi HydroMixer thermostatic fixed temperature mixing unit, Alpha 25-55U LH



    Item Details

    Connections:
    top outlets:1-1/4 in. male union threads
    bottom inlets:1-1/2 in. male union threads
    inlet/outlet center distance:5 inches (125 mm)
    Pump
    Pump Side:Left Side
    Three-speed pump:Grundfos: ALPHA 25-55U
    Body material:cast iron
    Power supply:115 V 50/60 Hz
    Pump connections:1 1/2” male straight
    Temperature gauges
    Dual scale:32 –176°F (0 – 80°C)
    Materials
    Three-way thermostatic mixing valve
    Body:brass
    Shutter:PSU
    Spring:stainless steel
    Seals:EPDM
    Connecting pipes
    Material:steel
    Check valve
    Body:brass
    Shutter:PPAG40
    Shut-off ball valves Body:brass
    Performance
    Suitable fluids:water, glycol solution
    Max. percentage of glycol:30%
    Max. working pressure:145 psi (10 bar)
    Adjustable temperature range:80–125°F (25–50°C)
    Primary inlet max. temperature:212°F (100°C)

    166 series HydroMixer

    The 166 series HydroMixer™ provides a fixed temperature flow to low temperature secondary heating circuits (such as floor radiant panels), complete with onboard three-speed or variable-speed pump, thermostatic three-way mixing valve with built-in temperature sensor, check valve, supply and return temperature gauges, secondary circuit shut-off ball valves and pre-formed insulation shell. Versions are available with either the three-speed Grundfos UPS 15-58 pump or the variable-speed Alpha 25-55U pump. The unit can be ordered with supply flow and pump on the right or left side, and the unit is field reversible to accommodate changing installation requirements. The adjustable differential pressure by-pass valve, code 519600 and wall bracket code 165001 are optional. The unit comes with male union connections which require separately purchased, 1 inch sweat or NPT, top outlet and bottom inlet fitting kits.



    Caleffi HydroMixer Pump Station
