ALPHA1 15-55F

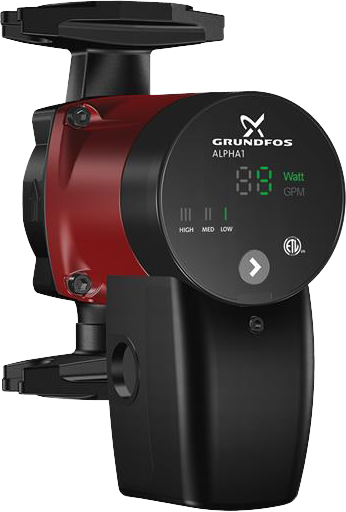

Grundfos ALPHA1, Cast iron flange

    194.88 194.88 194.88 USD

    194.88

    This combination does not exist.

    Add to Cart

    Grundfos ALPHA1, Cast iron flange



    Pumped liquid: Water
    Liquid temperature range: 35.6 .. 230 °F35.6 .. 230 °F
    Liquid temperature during operation:140 °F
    Density: 61.35 lb/ft³
    TF class: 110
    Approvals on nameplate: ETL, FCC, NSF
    Pump housing: Cast Iron
    Impeller: Composite
    Range of ambient temperature: 32 .. 104 °F
    Maximum operating pressure: 145 psi
    Type of connection: GF
    Pipe connection: 1.5
    Pressure stage: PN 10
    Port-to-port length: 6 1/2 in
    Power input - P1: 5 .. 45 W
    Main frequency: 60 Hz
    Rated voltage: 1 x 115 V
    Maximum current consumption: 0.1 .. 0.65 A
    Enclosure class (IEC 34-5): IP42
    Insulation class (IEC 85): F

    Grundfos Alpha ECM Pump

    Description

    Grundfos ALPHA1 is versatile and efficient circulator designed for heating and hot water recirculation systems. It features constant pressure control mode with three settings; Low, Intermediate, High. The intuitive one-button operation makes selection of the settings easy. The current operating mode is always visible on LED display.

    Compact design

    With the electronics integrated into the motor housing and standard 2-Bolt flange connection, installation into confined spaces and challenging applications are now possible. The ALPHA1 materials and design resist blockage from magnetite and iron oxide particles found in closed hydronic systems. The large LED display shows the current energy consumption in Watts and estimated flow in gallons per minute

    Robust startup

    • Enables the ALPHA1 to continuously attempt to restart – indefinitely – in blocked rotor conditions
    • ALPHA1 is complete with an integrated check-valve, and nut captures for flanges. It comes in both cast iron and stainless steel models
    • Two options for power connections
      • For installation, you have the flexibility to use either our unique ALPHA Plug with line cord or the ALPHA1 with terminal box for conduit connections

    AUTOADAPT

    The super-effective AUTOADAPT function automatically adapts the pump to changes in demand and figures out the optimal performance. This means end users can have the best possible comfort combined with minimum energy consumption. AUTOADAPT works in virtually all systems.

    AUTOADAPT software recognizes changes in system demands, i.e…valves opening and closing. By monitoring the motor current vs. pump hydraulic relationships, motor speeds are adjusted automatically to reflect changing head-flow requirements. Ensuring maximum energy savings and comfort level.

    APPLICATIONS

    • Hydronic heating
    • Fan coil heating
    • Solar heating
    • Radiant heating systems
